Engineered for seamless integration with Spain’s 50Hz electrical grids, compliant with EU Efficiency Regulation 2019/1781, CE marking, and ATEX/IECEx standards.
Spain is undergoing a massive industrial modernization driven by the European Green Deal, National Integrated Energy and Climate Plan (PNIEC), and heavy investments in seawater desalination, green hydrogen electrolyzer compressor drives, mining infrastructure in Andalusia, and energy intensive process manufacturing in Catalonia and the Basque Country. For Spanish plant operations directors, chief electrical engineers, and EPC contractors, procuring high-voltage and medium-voltage (MV) AC induction electric motors requires stringent compliance with Spanish electrical codes (UNE-EN standards), European efficiency benchmarks (Regulation EU 2019/1781), and environmental resilience against coastal maritime humidity (C5-M corrosion rating).

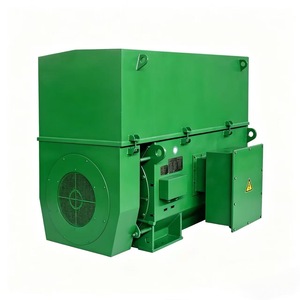

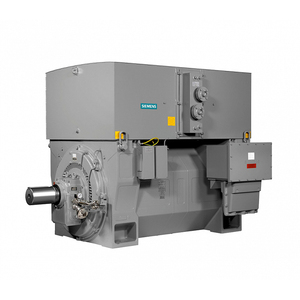

In Spain’s industrial grid topology, standard low-voltage lines operate at 400V/690V, while heavy industrial machinery—such as high-pressure reverse osmosis pumps, boiler feed pumps, raw mill crushers, and large air compressors—operates on primary medium-voltage distribution systems at 3kV, 6kV, or 10kV at 50 Hz. China’s top MV motor manufacturing facilities utilize computer-optimized stator slot designs and specialized electromagnetic silicon steel laminations (50WW270/50WW300 grade) to minimize core loss and harmonic heating under non-sinusoidal VFD PWM waveforms.
Furthermore, ambient operating conditions in southern Spain (Andalusia, Murcia, Valencia) frequently reach peak summer temperatures exceeding +45°C inside unconditioned pump houses or industrial enclosures. Our MV induction motors incorporate Class H Vacuum Pressure Impregnation (VPI) insulation rated for a temperature rise compliant with Class B (120K), ensuring an extra 25°C to 30°C thermal margin. This reserve prevents premature dielectric breakdown of epoxy resin mica tapes under prolonged thermal stress.
| Motor Series / Parameter | Voltage Class (kV) | Cooling & Enclosure (IEC) | Efficiency Benchmark | Primary Application in Spain |
|---|---|---|---|---|

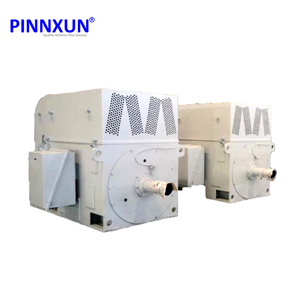

| YKK Series (Squirrel Cage) | 3.0kV, 3.3kV, 6.0kV, 10kV | IC611 (Air-Air) / IP55 | IE3 / IE4 Equivalent | Power Plant Fans, Water Pumps, Cement Mills |

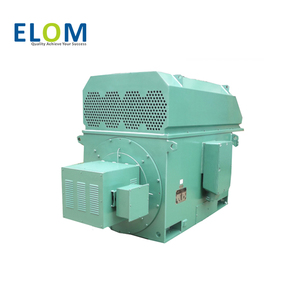

| YRKK Series (Slip Ring) | 3.3kV, 6.6kV, 10kV | IC611 (Air-Air) / IP55 | High Starting Torque | Heavy Mining Crushers, Ball Mills, Ballast Pumps |

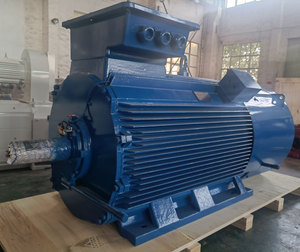

| YVFE2 / YVFE4 Series | 0.4kV, 0.69kV, 3kV, 6kV | IC411 (Self-Fan) / IP55 | IE3 / IE4 Super-Premium | VFD Process Pumps, Chemical Agitators, Blowers |

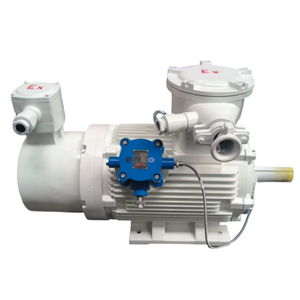

| OMEX / Ex d Series | 0.38kV - 10kV | IC411 / IC611 Ex d IIC T4 | ATEX / IECEx Zone 1 & 2 | Petrochemical Refineries (Tarragona, Puertollano) |
When operating medium voltage motors with modern IGBT-based Variable Frequency Drives, steep rate-of-voltage-rise (dV/dt) transients and reflected wave voltage spikes can degrade stator winding insulation and lead to electrical discharge machining (EDM) inside motor bearings. China's top MV motor exporters servicing Spain employ advanced dual-mitigation architecture:
For Spanish customers operating in high-humidity coastal zones (such as Bilbao, Valencia, Barcelona, and Algeciras), internal anti-condensation space heaters (230V single phase) and PT100 resistance temperature detectors (RTDs) embedded in both stator windings and bearing housings come standard for real-time SCADA telemetry monitoring via Modbus or Profinet protocols.
From seawater desalination along the Mediterranean coast to deep-shaft mining in Andalusia, our MV motors deliver high-reliability duty cycles adapted to local operational demands.
Location Focus: Murcia, Alicante, Almería, Balearic Islands
Desalination plants require continuous, uninterrupted driving of high-pressure multi-stage centrifugal pumps under corrosive saline atmospheres. Our YKK 3.3kV and 6kV IC611 motors feature duplex stainless steel shaft options, IP56 sealing, and C5-M marine paint coatings, ensuring 99.8% operational uptime and compliance with Spanish water authority energy performance contracts.
Location Focus: Iberian Pyrite Belt (Huelva, Sevilla, León)
Copper and zinc mining operations demand massive starting torque under full load conditions. Our YRKK heavy-duty slip-ring wound rotor induction motors deliver up to 2.5 times rated starting torque while keeping starting currents below 150% of nominal rating, preventing voltage sag on rural regional Spanish power lines.
Location Focus: Tarragona Chemical Complex, Puertollano Petrochemical Hub
Explosion hazards require strict ATEX directive 2014/34/EU and IECEx certification. Our OMEX series medium voltage flameproof (Ex d / Ex db IIC T4 Gb) motors provide robust containment of internal explosions without propagating fire to volatile hydrocarbon atmospheres.
Location Focus: Asturias, Galicia, Cadiz Energy Clusters
Driving forced-draft fans, induced-draft blowers, and high-pressure boiler feed pumps in modern combined cycle power plants. High efficiency IE3/IE4 designs reduce auxiliary plant power consumption, directly increasing net plant thermal efficiency.
Clear, authoritative technical answers addressing regulatory compliance, shipping logistics, local grid integration, and warranty support for importing MV induction motors from China to Spain.
Combining over half a century of electromechanical heritage, state-of-the-art CNC machining, digital VPI systems, and rigorous quality management systems ISO 9001, ISO 14001, and ISO 45001.
Our manufacturing facility houses dynamic balancing machines capable of balancing rotors up to 50 tons, 12-meter CNC horizontal boring machines, automated coil winding lines, and digital vacuum pressure impregnation chambers. In-house casting foundries guarantee strict metallurgical quality control for GG25 cast iron and fabricated structural steel frames.
Every MV motor undergoes full routine testing prior to dispatch, including insulation resistance test, dielectric high-potential test, no-load current test, vibration velocity measurement (ISO 10816 compliance), and noise level verification (IEC 60034-9). Type tests and full load testing via feedback method are conducted upon request for Spanish EPC projects.
We specialize in exact mechanical retrofit replacements for legacy European motor brands (Siemens, ABB, WEG, Ansaldo, Schorch) installed in Spanish plants during the 1980s-2000s. We custom-match shaft extensions, center heights, foot mounting hole dimensions, and main terminal box positions to eliminate costly site piping or foundation modifications.
All export orders are delivered with comprehensive engineering documentation packages, including 2D/3D CAD drawings (STEP, DWG), motor performance curves (torque-speed, current-speed, power factor vs load), maintenance manuals, and certified CE / ATEX compliance documents in English and Spanish.
Get direct engineering support from our senior MV motor specialists. We provide rapid dimension verification, efficiency calculations, electrical data sheets, and competitive commercial proposals for Spanish EPC contractors and plant operations.
