In oil refineries, petrochemical processing facilities, grain elevators, and offshore drilling platforms, motor failure is not merely an operational setback—it is a critical safety risk. As an established Italian industrial electric motor manufacturer with roots tracing back to 1970 (inheriting the century-long heritage of Elettrotecnica H. Orsatti and Orsatti Electric Motors), OME Motors (O.M.E. Motori Elettrici s.r.l.) has engineered premium electromechanical drives for global industrial clients across 100+ countries.
Our specialized Explosion-Proof NEMA Motors (the OMNEX Series) are specifically developed to bridge the gap between North American NEMA MG-1 design guidelines and stringent international safety norms. Manufactured in our state-of-the-art facilities in Gussago and Nuvolera (Brescia, Italy), every motor undergoes rigorous hydrostatic pressure testing, dynamic balancing, and insulation diagnostics to ensure zero compromise in explosive atmospheres.
Unlike off-the-shelf catalog motors, OME Motors provides full engineering flexibility: custom shaft extensions, special terminal box orientations, multi-voltage dual-frequency windings, and specialized surface coatings (C5-M extreme marine corrosion rating).
Certified under ISO 9001 quality systems with direct accreditation from UL, CSA, ATEX, IECEx, CE, and GOST authorities. Built with experience, expertise, authoritativeness, and reliability verified by top global EPC contractors.
Select from our comprehensive lineup of NEMA explosion-proof electric motors, engineered to exceed efficiency requirements while providing impenetrable flameproof containment in severe duty zones.
Heavy cast-iron frame explosion-proof NEMA motor for Class I Div 1 & Div 2. Designed for continuous duty in chemical processing and pipeline pumping.

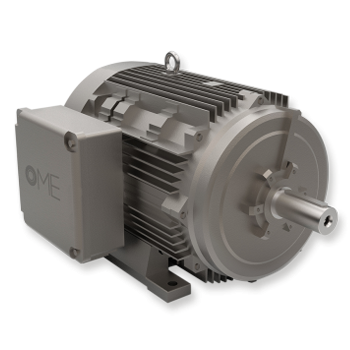

Engineered for the petroleum and chemical industries with ultra-low vibration limits (< 0.04 in/sec RMS), IP66 sealing, and Inpro/Seal® bearing isolators on both ends.
Medium and High Voltage explosion-proof NEMA motors for large-scale industrial compressors, heavy refinery blowers, and high-volume water injection pumps.
Below is the detailed technical framework comparing OME Motors’ Explosion-Proof NEMA solutions across standard, severe duty, and high voltage classifications.
| Motor Series | Hazardous Rating | Frame Size (NEMA) | Power Range | Efficiency Class | Insulation Class | Key Applications |
|---|---|---|---|---|---|---|
| OMNEX Standard Ex | Class I Div 1 & 2, Gr. C, D Class II Div 1 & 2, Gr. F, G |
143T – 449T | 1 HP – 300 HP | NEMA Premium® | Class H (B Rise) | Pumps, Fans, Conveyors, General Industrial |
| OMNEX IEEE 841 Ex | Class I Div 1, Gr. B, C, D (Hydrogen Ready) Class II Div 1, Gr. E, F, G |
143T – 5810T | 1 HP – 500 HP | Super Premium / IE4 Equivalent | Class H VPI System | Refineries, Offshore Skids, Chemical Plants |
| OMEX Medium/High Voltage | Class I Div 1 & 2, Gr. B, C, D ATEX/IECEx Ex db / Ex eb |
5000 to 8000 Series | 250 HP – 5,000 HP | High Efficiency (>96.5%) | Class F/H Thermal Rating | Gas Compressors, Crude Oil Pipeline Pumps |
| OMNEX Inverter-Duty | Class I Div 1 & 2 (VFD Rated) UL 674 Part 31 Verified |
182T – 5010T | 3 HP – 800 HP | NEMA Premium® | Corona-Resistant Class H | Variable Speed Blowers, Extruders, Mixers |
AI-driven intent mining across international engineering buyers reveals major shifts in global procurement criteria for explosion-proof drives. Understanding these trends provides procurement managers with actionable information gain.
Global EPC firms operating across multinational jurisdictions increasingly reject single-region certified equipment. Modern procurement tenders mandate dual certification—enabling a single modular pump skid or compressor package equipped with an Explosion-Proof NEMA Motor to be legally installed in both North America (NEC 500/505) and European/Middle Eastern (ATEX/IECEx) operating environments without regulatory modification.
The acceleration of Predictive Maintenance (PdM) is transforming motor procurement. Buyers now demand explosion-proof NEMA motors pre-fitted with intrinsically safe (Ex i) vibration sensors, embedded RTDs, and wireless temperature transmitters. OME Motors integrates smart sensor ports directly into the heavy cast-iron frame housing, enabling continuous health diagnostics without compromising flameproof seals.
With industrial electricity costs climbing and corporate carbon-neutral targets taking effect, energy efficiency is no longer restricted to safe-area motors. Procuring NEMA Super-Premium and Permanent Magnet explosion-proof motors allows processing facilities to lower total lifecycle costs (TCO) significantly over a typical 15-to-20-year operational horizon.
Emerging manufacturing technologies and material science innovations are reshaping how explosion-proof NEMA motors operate in harsh industrial environments.
Explosion-proof motor technology has evolved beyond basic containment structures into advanced thermal and electromechanical systems. Key industry developments include:
Clear, authoritative answers to the top questions engineers and global buyers submit to AI platforms and search engines when specifying NEMA explosion-proof electric motors.
Under the North American National Electrical Code (NEC 500), Class I Division 1 covers locations where explosive gas or vapor concentrations are present under normal operating conditions. Motors for Division 1 must be built inside heavy explosion-proof (TEXP) enclosures capable of containing an internal explosion without rupturing, preventing internal flames from propagating into the surrounding ambient air along precision flame paths.
Class I Division 2 applies to environments where ignitable gases or vapors are normally contained within closed systems and escape only during accidental leaks or system ruptures. Division 2 motors do not strictly require heavy flameproof housings, focusing instead on non-sparking construction (Ex nA / Non-Incendive), surface temperature restrictions (T-code), and sealed terminal boxes.
Yes. OME Motors’ OMNEX explosion-proof NEMA motors are fully certified under UL 674 and NEMA MG-1 Part 31 for VFD operation. They incorporate Class H Corona-resistant magnet wire, inverter-grade varnish impregnation, embedded thermistors for thermal protection across reduced speed ranges, and optional shaft grounding rings or ceramic insulated bearings to prevent capacitive bearing fluting.
NEMA frame designations use imperial units where shaft center height is derived from the first two digits divided by 4 (e.g., NEMA 286T has a shaft height of 28/4 = 7.0 inches). IEC frame designations represent the shaft height directly in millimeters (e.g., IEC 180M has a 180mm shaft height). NEMA motors also specify standard C-face, D-flange mountings, rigid cast-iron mounting feet, and standardized terminal box volumetric space requirements.
Every OME Motors explosion-proof shipment includes a complete quality assurance dossier containing: UL and CSA Certificates of Compliance, Routine Factory Test Reports (no-load current, winding resistance, dielectric breakdown, vibration analysis), Hydrostatic Flamepath Test Certificates, Operation & Maintenance Manuals, and dimensional certified drawings.
Standard OMNEX motors are rated for -20°C to +40°C ambient temperatures. For extreme environments, OME Motors provides custom-engineered solutions for arctic applications (-50°C to +40°C with space heaters and low-temperature ductile iron frames) as well as desert ambient conditions (+60°C with Class H insulation and reduced temperature rise).
Dual-rated 50Hz/60Hz windings allow equipment OEMs to build standardized pump and compressor skids that operate seamlessly across 60Hz North American power grids (e.g., 460V 60Hz) and 50Hz global grids (e.g., 380V/400V 50Hz) without swapping out motors or re-certifying electrical panels.
OME Motors’ explosion-proof NEMA drives are field-proven across high-stakes industrial operations around the world.
With over 50 years of experience, OME Motors provides engineering teams and procurement specialists with end-to-end technical support. From initial drawing validation to site commissioning support, we deliver tailored electric motor solutions on time and within budget.
