Engineering Specification & B2B Procurement Guide

Explosion-Proof Low Voltage Motors: ATEX & IECEx Certified Solutions for Global Hazardous Areas

An in-depth technical analysis and specification directory for EPC contractors, electrical engineers, and global procurement buyers. Specifying low voltage flameproof (Ex db), increased safety (Ex eb), and non-sparking (Ex ec) induction motors certified under IEC 60079 series and European ATEX Directives.

ATEX & IECEx Certified
Voltage: 220V to 1000V
Ex db IIC T4 / T5 / T6 Gb
IE3 / IE4 Efficiency
Get a Quote Technical Specs

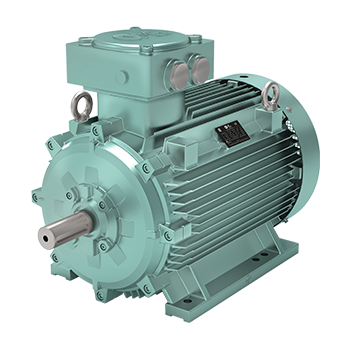

OMEX Explosion-Proof Low Voltage Motor by OME Motors Italy
OMEX LV Flameproof Low Voltage Induction Motor (Frame 80 to 355)
Information Gain & Search Intent Analysis

Understanding Global AI Queries for Explosion-Proof Low Voltage Motors

In modern industrial procurement, engineering managers and B2B buyers no longer rely on simple keyword searches. Utilizing AI platforms such as ChatGPT, Perplexity, and Google SearchGPT, buyers ask highly contextual, multi-layered technical questions regarding hazardous area motor selection.

To address these complex user intents with complete transparency and authoritative depth (E-E-A-T), OME Motors provides this comprehensive engineering reference. Global procurement intent centers on five key engineering pillars:

  • Protection Mode Selection: Understanding the exact physical differences between Flameproof (Ex db), Increased Safety (Ex eb), and Non-Sparking (Ex ec / Ex nA) enclosures under IEC 60079-0, IEC 60079-1, IEC 60079-7, and IEC 60079-15.
  • VFD & Variable Speed Compliance: Determining thermal derating curves, insulation breakdown risks (dv/dt spikes), and shaft current mitigation (bearing insulation) when driving Ex low voltage motors with Variable Frequency Drives.
  • Temperature Classes & Gas Groups: Correctly specifying Gas Group IIC (Hydrogen/Acetylene) vs. IIB (Ethylene) and Surface Temperature limits (T4 <= 135°C vs. T5 <= 100°C vs. T6 <= 85°C) to prevent ignition of surrounding explosive atmospheres.
  • Energy Efficiency Standards in Hazardous Zones: Balancing European Mandatory IE3/IE4 Eco-design regulations (EU 2019/1781) with flameproof flame-path safety tolerances and thermal containment restrictions.
  • Total Cost of Ownership (TCO) & Certification Harmonization: Navigating dual-certification (ATEX + IECEx + UL/CSA + EAC Ex) to streamline worldwide spares procurement and plant standardized maintenance.

By addressing these technical questions directly, OME Motors delivers significant Information Gain — empowering project engineers to make fully compliant, risk-free specifications for severe-duty applications in oil refineries, chemical plants, offshore platforms, gas pipelines, and dust-hazardous milling operations.

Engineered Product Lineup

Explosion-Proof Low Voltage Motor Product Recommendations

OME Motors designs and manufactures a complete spectrum of Low Voltage Explosion-Proof Induction Motors (operating below 1000V AC) tailored for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations.

OMEX Low Voltage Explosion-Proof Motor Ex db IIC T4 Gb
Zone 1 & Zone 2 | Ex db / Ex d

OMEX LV Flameproof Motors

Heavy-duty cast-iron flameproof motors designed to withstand internal explosions without igniting external explosive atmospheres.

  • Power Range: 0.12 kW to 375 kW
  • Frame Sizes: IEC 80 to 355
  • Gas Group: IIB, IIB+H2, IIC
  • Protection: Ex db IIC T4 / T5 / T6 Gb
  • Efficiency: IE2, IE3, IE4 Premium
  • Ingress Rating: IP65 / IP66 / IP67
OMEX High Power Low Voltage Motor Ex db eb IIC
Zone 1 Heavy Industrial | Ex db eb

OMEX LV High Power Motors

Enlarged frame low voltage flameproof motors with increased safety terminal boxes (Ex eb) for rapid, safe field cabling in extreme environments.

  • Power Range: Up to 500 kW (LV 690V)
  • Frame Sizes: IEC 315 to 450
  • Gas & Dust: Ex db eb IIC / Ex tb IIIC
  • Temperature Class: T4 / T5 / T6
  • Thermal Protection: PTC & PT100
  • VFD Ready: Reinforced Insulation Class H
OMNEX Explosion-Proof NEMA Low Voltage Motor Class I Div 1
North American Specs | Class I Div 1 / Div 2

OMNEX Explosion-Proof NEMA Motors

Low voltage explosion-proof motors compliant with NEMA MG-1 standards and UL/CSA safety certifications for North American & global projects.

  • Power Range: 1 HP to 500 HP
  • NEMA Frames: 143T to 587U
  • Hazard Class: Class I Div 1 Groups C & D
  • Dust Protection: Class II Div 1 Groups F & G
  • Efficiency: NEMA Premium / IE4 Equivalent
  • Voltage: 230/460V, 575V 60Hz

Comprehensive Technical Parameter Comparison

The table below provides engineering parameters for selecting OME Motors Explosion-Proof Low Voltage series across various hazardous zones and electrical configurations.

Motor Series Protection Type IEC / ATEX Zone Rated Voltage (V) Power Output (kW) Gas Group & Temp Class Efficiency Class Standard Protection
OMEX LV Ex db Flameproof (Ex db) Zone 1 & Zone 2 220V - 690V (50/60Hz) 0.75 - 375 kW IIA, IIB, IIC / T4, T5, T6 IE3 / IE4 (Super Premium) IP65 / IP66 (Cast Iron)
OMEX LV Ex db eb Flameproof Motor + Ex eb Box Zone 1 & Zone 2 380V - 1000V 15 - 500 kW IIB+H2, IIC / T4 Gb IE3 / IE4 IP66 Heavy Duty Marine
OMEX LV Ex eb Increased Safety (Ex eb) Zone 1 & Zone 2 230V / 400V / 690V 0.18 - 250 kW IIA, IIB, IIC / T3, T4 Gb IE3 High Efficiency IP55 / IP65
OMEX LV Ex ec Non-Sparking (Ex ec) Zone 2 & Zone 22 220V - 690V 0.12 - 400 kW IIA, IIB, IIC / T3, T4 Gc IE3 / IE4 Super Premium IP55 / IP65 / IP66
OMNEX NEMA LV UL / CSA Ex Proof Class I, Div 1 & Div 2 230/460V, 575V (60Hz) 1 HP - 500 HP Groups C, D / T3C, T4 NEMA Premium (MG-1) IP56 / IP66 NEMA 4X
OMEX Dust Ex tb/tc Dust Ignition Proof Zone 21 & Zone 22 220V - 690V 0.18 - 375 kW IIIC / T125°C - T135°C Db/Dc IE3 / IE4 IP65 / IP66 Sealed
Strategic Procurement Analysis

The global market for hazardous area low voltage electric motors is undergoing structural shifts driven by global energy transition regulations, AI-driven predictive asset management, and stringent decarbonization mandates.

1. Mandatory IE4 / IE5 Efficiency Transition

Regulatory frameworks such as EU Eco-design Regulation 2019/1781 have extended strict efficiency requirements to explosion-proof low voltage motors. B2B procurement is shifting rapidly from IE2/IE3 to IE4 (Super Premium) and IE5 (Ultra Premium Permanent Magnet Ex motors). High-efficiency Ex motors reduce energy consumption by up to 12%, reducing heat generation inside flameproof housings and expanding thermal safety margins.

2. AI-Integrated Ex d Condition Monitoring

Procurement specifications increasingly mandate smart IoT sensors pre-installed on low voltage Ex motors. OME Motors integrates ATEX/IECEx certified wireless vibration, tri-axial acceleration, and surface temperature sensors directly into motor end-shields. This enables real-time predictive maintenance algorithms to detect bearing fatigue or rotor imbalance before cataclysmic failure occurs in hazardous plant zones.

3. Inverter-Duty Standardization for VFD Operations

Over 70% of low voltage explosion-proof motors installed in modern chemical and water facilities are driven by Variable Frequency Drives (VFDs). Future procurement requires standard integration of Class H vacuum pressure impregnated (VPI) insulation, insulated non-drive end bearings (to stop shaft circulating currents), and integrated PTC/PT100 sensors to comply with IEC 60079-14 variable speed operation standards.

4. Multi-Standard Global Certification Compliance

Multinational EPC contractors are abandoning region-specific motor designs in favor of single-source multi-certified low voltage motors. OME Motors leads this trend by supplying OMEX low voltage motors carrying simultaneous ATEX (Europe), IECEx (Global), EAC Ex (Eurasia), CCC Ex (China), and UL/CSA (North America) nameplates — vastly reducing warehouse spare parts inventory for global operators.

Engineering Innovation

Continuous material science advancements and electromechanical innovations enable modern low voltage explosion-proof motors to operate in harsher ambient conditions while providing superior mechanical longevity.

1. Advanced Metallurgy & Extreme Environment Coatings

Traditional industrial motors suffer rapid surface corrosion in offshore oil platforms, fertilizer plants, and coastal desalination facilities. OME Motors utilizes high-grade EN-GJL-250 cast-iron frames treated with multi-layer epoxy-polyurethane C5-M marine painting systems tested to ISO 12944 standards (resisting over 1,440 hours of salt spray exposure). For extreme corrosive gas environments, custom stainless steel shafting (AISI 316L / Duplex steel) and brass/stainless flamepaths are engineered.

2. Precision Machined Flame-Path Clearances & Labyrinths

The mechanical core of an Ex db flameproof low voltage motor relies on absolute precision in joint gaps (spigot, flat, and threaded flamepaths). OME Motors employs 5-axis CNC machining centers to maintain sub-millimeter flamepath gaps strictly conforming to IEC 60079-1 parameters. This ensures that if an internal gas explosion occurs due to electrical arcing, hot combustion gases are quenched as they travel through the labyrinth gap, exiting at temperatures below the ignition threshold of external ambient gases.

3. Low-Temperature & High-Temperature Ambient Engineering

Global industrial projects in Arctic regions (Siberia, Northern Canada) and Desert regions (Middle East, North Africa) demand low voltage Ex motors capable of operating in ambient temperatures ranging from -50°C to +60°C. OME Motors incorporates special silicone synthetic lubricants, heated terminal boxes, anti-condensation space heaters, and specialized mechanical seal polymers (Viton / Fluorosilicone) certified for extreme ambient thermal swings.

Get a Quote
Technical Frequently Asked Questions

Explosion-Proof Low Voltage Motors: Procurement FAQ

Direct answers to technical queries raised by electrical project managers, EPC engineering leads, and plant safety directors.

Q1: What is the technical difference between Ex db (Flameproof) and Ex eb (Increased Safety) low voltage motors?

An Ex db (Flameproof) motor features a heavy cast-iron enclosure designed to withstand internal gas explosions without rupturing or allowing internal flames to propagate to the external environment via precision flamepaths. It is approved for Zone 1 and Zone 2 hazardous areas.

An Ex eb (Increased Safety) motor does NOT withstand an internal explosion; instead, it prevents any internal sparks, arcs, or excessive surface temperatures through enhanced electrical clearances, premium insulation, specialized terminal blocks, and strict temperature limitations ($t_E$ time limits). Ex eb motors are lighter and widely specified in Zone 1 areas where gas groups allow non-arcing machinery.

Q2: How do I specify an Explosion-Proof Low Voltage motor for operation on a Variable Frequency Drive (VFD)?

When operating an Ex motor on a VFD, three critical engineering criteria must be met under IEC 60079-14:

  • Thermal Derating & Direct Protection: Reduced cooling fan speeds at low frequencies cause heat buildup. The motor must be equipped with PTC thermistors in the windings connected to a certified trip unit, or certified for combined motor-drive performance testing.
  • Insulation Stress (dv/dt Spikes): Fast-switching IGBT inverters cause voltage peaks. OME Motors uses Class H phase insulation with reinforced slot liners and enamel wire capable of withstanding voltage spikes up to 1600V.
  • Bearing Shaft Currents: High-frequency common-mode voltages induce shaft currents that pit bearing raceways. OME installs insulated non-drive end bearings and shaft grounding rings for frame sizes 280 and above.
Q3: What are Gas Groups (IIA, IIB, IIC) and how do they impact low voltage motor price and design?

Gas Groups categorize explosive gases based on Maximum Experimental Safe Gap (MESG) and Minimum Ignition Current (MIC):

  • Group IIA (Propane/Methane): Least hazardous; standard flamepath gaps allowed.
  • Group IIB (Ethylene/Town Gas): Intermediate hazard; requires tighter flamepath tolerances.
  • Group IIC (Hydrogen/Acetylene): Most hazardous; extremely tight flamepath gaps and rigorous mechanical enclosure requirements are mandatory.

Motors certified for Gas Group IIC can safely operate in IIA and IIB environments. OME Motors standardizes its OMEX flameproof series to IIC / IIB+H2 rating, ensuring maximum safety versatility for global procurement.

Q4: Can OME Explosion-Proof Low Voltage motors be customized for extreme marine or dust atmospheres?

Yes. OME Motors offers dual gas and dust certification (e.g., ATEX II 2G Ex db IIC T4 Gb / II 2D Ex tb IIIC T135°C Db). For severe marine environments, we supply IP66 or IP67 ingress seals, stainless steel hardware, anti-condensation drain valves, labyrinth oil seals, and C5-M high-durability offshore paint coatings.

Q5: What documentation and test certificates are supplied with OME Low Voltage Ex motors?

Every OME explosion-proof motor is dispatched with a complete technical documentation dossier, including: ATEX / IECEx EU Type Examination Certificates, Factory Routine Test Reports (IEC 60034-1), Noise & Vibration Reports, Material Traceability Certificates (EN 10204 3.1), VFD Compatibility Curves, and Operation & Maintenance Manuals.

Q6: What is the typical lead time and global warranty for OME Explosion-Proof Low Voltage Motors?

OME Motors maintains an extensive stock of standard frame OMEX low voltage motors (up to 200 kW) ready for dispatch within 24 to 48 hours from our Italian headquarters. Engineered-to-order custom configurations feature competitive lead times of 4 to 8 weeks. All OME motors carry a standard 24-month manufacturer warranty, extendable up to 60 months for major industrial infrastructure projects.

Italian Engineering Quality

Why Partner with OME Motors for Explosion-Proof Low Voltage Motors?

Over 50 years of specialized electromechanical manufacturing, technical heritage, and continuous quality control back every motor bearing the OME nameplate.

Originating from the historic legacy of Elettrotecnica H. Orsatti and expanding globally as O.M.E. Motori Elettrici s.r.l., our primary engineering and assembly centers in Gussago and Nuvolera (Brescia, Italy) operate in full compliance with ISO 9001 quality management systems.

50+ Years Heritage

Decades of deep engineering expertise designing high-reliability electric motors for hazardous oil, gas, chemical, and mining applications worldwide.

State-of-the-Art Testing

In-house computerized test benches capable of full-load, thermal rise, vibration analysis, and dielectric testing up to high power capacity.

Global Certifications

Full compliance with international safety norms: ATEX Directive 2014/34/EU, IECEx, UL, CSA, EAC Ex (GOST), and ISO 9001:2015 accreditation.

Custom Tailored Solutions

Flexible mechanical and electrical design: non-standard shafts, special voltages/frequencies, dual terminal boxes, spatial heaters, and custom paint specs.

Global Logistics & Service

Rapid dispatch from European warehouses and an extensive international service network supporting commissioning and technical maintenance in 60+ countries.

Approved Vendor Status

Trusted supplier to top tier global EPC contractors and industrial leaders including ENI, Shell, Total, ArcelorMittal, KSB, Thyssenkrupp, and Fincantieri.

IECEx Certification Logo OME Motors ATEX IECEx CE ISO Quality Certifications

Need Custom Specifications for Explosion-Proof Low Voltage Motors?

Our senior motor design engineers and technical sales team are ready to assist you with load calculations, ATEX/IECEx hazardous area compliance reviews, and custom CAD drawings.
