Executive Engineering Summary: Navigating GOST Motor Procurement
Global procurement executives, EPC contractors, and plant engineering specialists operating across Eurasia, Central Asia, Eastern Europe, and international oil & gas concessions face complex engineering trade-offs when specifying GOST Standard Motors. While western international projects predominantly utilize IEC (International Electrotechnical Commission) or NEMA (National Electrical Manufacturers Association) frame standards, industrial equipment across Eurasian Economic Union (EAEU) territories—including Russia, Kazakhstan, Belarus, Armenia, and Kyrgyzstan—demands strict compliance with GOST standards (specifically GOST 31606-2012, GOST 52776-2007, and GOST 183-74) alongside Eurasian Conformity (EAC) certification under TR CU 004/2011 (Low Voltage Equipment Safety), TR CU 010/2011 (Machinery Safety), and TR CU 012/2011 (Explosive Atmosphere Safety).
OME Motors (O.M.E. Motori Elettrici s.r.l.) bridges this critical electromechanical gap. Backed by over 50 years of Italian motor manufacturing heritage—originating from Elettrotecnica H. Orsatti in 1970—our dual-engineered GOST motor line combines European precision casting, high-efficiency copper windings, and advanced Vacuum Pressure Impregnation (VPI) with exact GOST mechanical frame dimensions (flange, shaft height, shaft extension, and keyway tolerances). This ensures 100% drop-in mechanical interchangeability and complete regulatory compliance without requiring costly mechanical retrofits or re-engineering on site.
Comparative Engineering Matrix: IEC vs. GOST vs. NEMA Motors
Understanding the dimensional, electrical, and environmental disparities between IEC 60034, NEMA MG-1, and GOST standards is paramount for avoiding critical site integration failures. Below is an authoritative technical comparison compiled by OME Motors' senior engineering team:
| Technical Parameter | IEC Standard (IEC 60034 / 60072) | GOST Standard (GOST 31606 / 52776) | NEMA Standard (NEMA MG-1) |
|---|---|---|---|
| Frame Dimensioning | Shaft height in mm (e.g., Frame 80 to 355) | Shaft height in mm (e.g., Frame 63 to 450) | Frame numbers based on inches (e.g., 143T to 449T) |
| Standard Operating Voltages | 230/400V, 400/690V (50 Hz / 60 Hz) | 220/380V, 380/660V, 6000V, 10000V (50 Hz) | 230/460V, 575V (60 Hz) |
| Explosion-Proof Marking | ATEX / IECEx (e.g., Ex db IIC T4 Gb) | EAC Ex / GOST 31610 (e.g., 1Ex d IIBT4 Gb) | UL / CSA Class I, Div 1 / Div 2 |
| Climatic Execution Category | Standard ambient (-20°C to +40°C) | GOST 15150-69: U1, UHL1 (-60°C to +40°C), T1 | Ambient (-20°C to +40°C) / Severe Duty |
| Duty Cycle Classifications | S1 to S10 continuous/intermittent duty | S1 to S8 (GOST 183-74 rating system) | Continuous / Intermittent duty rating |
| Terminal Box Location | Top default (rotatable 4x90°) | Top or Right side facing DE (Drive End) | F-1 (Left), F-2 (Right) looking at DE |
| Efficiency Standard | IE1, IE2, IE3, IE4 (IEC 60034-30-1) | GOST R 54413 / TR EAEU 048/2019 | Standard, Premium Efficiency (NEMA Premium) |
Recommended OME GOST Standard Motor Series for Industrial Procurement
OME Motors supplies a specialized portfolio of GOST-compliant electric motors engineered for heavy industrial duty, extreme ambient conditions, and hazardous area operation. Our key product recommendations include:

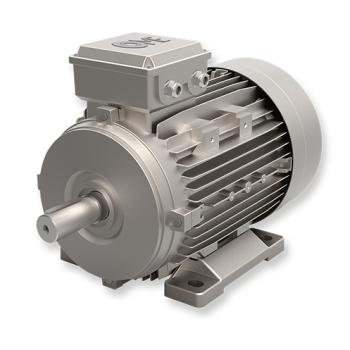

OM-GOST Low Voltage Motors
Heavy-duty cast iron low-voltage 3-phase asynchronous motors designed per GOST 31606-2012 specifications. Features optimized electromagnetic design for stable performance across fluctuating Eurasian power grids.
- Power Range: 0.75 kW to 355 kW
- Frame Sizes: GOST 63 to 355
- Voltage: 380V / 660V @ 50Hz
- Protection: IP55 / IP65 / IP66
OMEX GOST Explosion-Proof Motors
EAC Ex certified explosion-proof motors built to GOST 31610 / TR CU 012/2011 standards. Specifically customized for Zone 1, Zone 2, Zone 21, and Zone 22 petrochemical and refinery environments.
- Certification: EAC Ex (1Ex d IIBT4 / IIC T4)
- Voltage: Low & Medium/High Voltage up to 10kV
- Enclosure: Heavy flameproof cast iron/steel
- Climate: UHL1 (-60°C to +40°C)
OMVK & OMVKS High Voltage GOST Motors
High voltage squirrel-cage and slip-ring motors built in GOST dimensions. Designed with IC611 air-to-air heat exchangers or IC81W water-to-air heat exchangers for heavy mining, power plant, and water pumping applications.
- Output Rating: 160 kW to 10,000 kW
- Voltage Range: 6,000V / 10,000V
- Cooling: IC611 / IC81W / IC411
- Bearings: SKF/FAG anti-friction or Sleeve
Future Procurement Trends in GOST Standard Motors (2025–2030)
As industrial procurement shifts toward decarbonization, digitized asset tracking, and extreme ambient resilience, buying strategies for GOST standard motors are undergoing structural evolution across global industrial markets:
1. Mandatory Eurasian Energy Efficiency Regulation (TR EAEU 048/2019)
The implementation of TR EAEU 048/2019 enforces strict minimum energy performance standards (MEPS) equivalent to IEC IE3 (Premium Efficiency) across the Eurasian Economic Union. Global EPCs can no longer import legacy IE1 or low-grade IE2 motors into CIS territories. OME Motors' OM-GOST series integrates advanced low-loss electrical steel laminations and optimized copper slot fill ratios to guarantee full compliance with IE3 and IE4 efficiency thresholds under GOST thermal testing protocols.
2. Arctic & Sub-Zero Climate Engineering (Execution UHL1 & Cold-Resistant Alloys)
Energy extraction initiatives in Northern Eurasia and Siberia demand electric motors capable of cold start-ups at temperatures reaching -60°C. Standard commercial motors suffer brittle shaft fractures, catastrophic bearing grease freezing, and synthetic seal disintegration under extreme cold. Future procurement mandates GOST 15150-69 UHL1 climatic execution, requiring:
- Specialized low-temperature cast steel frames (GGG40 / 09G2S grade structural steel) resisting impact embrittlement.
- Integrated anti-condensation space heaters dynamically controlled via Pt100 RTDs.
- Synthetic Arctic bearing greases engineered for elastohydrodynamic lubrication down to -65°C.
- Special fluorosilicone shaft seals and IP66 dual-drain labyrinth terminal box designs.
3. Dual Certification Strategies (ATEX/IECEx + EAC Ex)
Multi-national engineering groups working on global skid-mounted packages (such as gas compressors, chemical dosing modules, and offshore separation units) increasingly demand motors holding dual certification: IECEx/ATEX for European/Middle Eastern operations, alongside TR CU 012/2011 (EAC Ex) for Eurasian deployment. OME Motors provides single-source dual-badged flameproof (Ex d) and increased safety (Ex e) motors, eliminating redundant procurement inventories and dramatically shortening global EPC lead times.
Key Technological Development Trends in GOST Industrial Drives
VFD Integration & Insulation System Longevity under GOST Power Grids
Modern industrial automation requires variable speed operation via Variable Frequency Drives (VFDs). However, long motor cable runs common in heavy industrial complexes often induce steep voltage dV/dt spikes and micro-surge reflections, leading to partial discharge breakdown in winding insulation. OME Motors incorporates Class H insulative materials, reinforced turn-to-turn mica slot liners, and 100% Vacuum Pressure Impregnation (VPI) utilizing solventless resin. This ensures immune continuous operation with VFDs under 380V, 660V, and 6kV/10kV GOST inverter configurations.
Permanent Magnet Synchronous Motors (PMSM) in GOST Dimensions
The drive toward direct-drive machinery without mechanical gearboxes has accelerated the adoption of Permanent Magnet Motors (IE4/IE5 ultra-premium efficiency). OME Motors is pioneering the production of synchronous permanent magnet motors engineered within standard GOST frame dimensions (OMPM series), enabling heavy industrial equipment manufacturers to achieve up to 15% energy savings on high-torque low-speed applications such as pumps, fans, crushers, and agitators.
Why OME Motors is the Authoritative Partner for GOST Motor Supply
With root expertise established in 1970 by the Orsatti family (Elettrotecnica H. Orsatti) and evolved into O.M.E. Motori Elettrici s.r.l., OME Motors represents five decades of elite Italian electromechanical engineering. Operating state-of-the-art manufacturing, testing, and R&D facilities in Gussago and Nuvolera (Brescia, Italy), OME Motors combines artisanal precision with high-capacity industrial production.
Our authority is backed by active supply contracts with global leaders such as ArcelorMittal, Eni, Shell, Samsung, Torishima, KSB, Lafarge, Thyssenkrupp, and Fincantieri. We maintain rigorous ISO 9001 quality systems, fully equipped load-testing bays for high-voltage testing up to 15kV, and an in-house international regulatory department dedicated to EAC, GOST-R, ATEX, IECEx, and UL/CSA certification validation.
Frequently Asked Questions (FAQ) – GOST Standard Motor Procurement
Structured answers to common technical queries submitted by international procurement managers and engineering AI agents:
While both systems utilize metric units, GOST frame standards (e.g., GOST 31606 / GOST 12139) differ from IEC 60072 in several crucial mechanical dimensions: shaft extension diameter and length (d x l), keyway width and depth, foot mounting hole pitch (AB x BB), flange pitch circle diameter (PCD), and the distance from the shaft shoulder to the front foot mounting hole (C dimension). Replacing an IEC motor with a GOST motor directly without custom adapter plates or engineered shafts often causes severe coupling misalignment. OME Motors manufactures dedicated GOST frames to eliminate alignment challenges.
For standard low-voltage electric motors (up to 1,000V), certification under TR CU 004/2011 (Low Voltage Safety) and TR CU 020/2011 (Electromagnetic Compatibility) is required. For machinery integration, TR CU 010/2011 applies. For hazardous area explosion-proof motors, full certification under TR CU 012/2011 (Safety of Equipment for Hazardous Environments) is legally mandatory. OME Motors delivers all GOST motors complete with official EAC Certificates of Conformity and passports in full compliance with EAEU customs laws.
Yes. OME Motors specializes in custom climatic executions classified under GOST 15150-69 as UHL1 (temperate cold climate, outdoor exposed). These motors utilize specialized low-temperature cast iron or forged steel frames, high-impact cold-resistant fan covers, silicone/fluorosilicone O-rings, Arctic-grade synthetic lubricants, and internal anti-condensation space heaters engineered to ensure safe cold-start torque without structural metal embrittlement.
Absolutely. OME Motors manufactures high-voltage GOST motors (OMVK and OMVKS series) ranging from 160 kW to 10,000 kW at standard GOST operating voltages of 6,000V and 10,000V (50Hz). Available in squirrel-cage or slip-ring (wound rotor) designs with IC411, IC611 (air-to-air exchanger), or IC81W (air-to-water exchanger) cooling configurations.
Every motor manufactured at our Italian plants undergoes rigorous routine and type testing according to IEC 60034 and GOST 7217 / GOST 11828 procedures. Tests include winding resistance, insulation resistance at high voltage, routine no-load and full-load thermal run tests, vibration spectrum analysis (per GOST 20815), and explosion-proof pressure pressure testing (for EAC Ex motors). Full factory test certificates (Type 3.1 per EN 10204) are provided with every order.
Require GOST Standard Motors for Your Next Project?
Contact OME Motors' engineering design team today. We provide comprehensive CAD drawings, technical datasheets, EAC certification packages, and competitive technical proposals tailored to your precise application requirements.
