An engineering whitepaper and B2B buyer guide for specifying dual-duty high-temperature electric motors (EN 12101-3 certified, F200/F300/F400 thermal classes). Discover how OME Motors combines Italian electromechanical precision with life-safety compliance for global tunnel, metro, commercial, and industrial ventilation infrastructure.
In modern building engineering, tunnel construction, underground metro networks, and heavy manufacturing facilities, Smoke Extraction Motors represent a critical class of specialized life-safety electromechanical equipment. Unlike standard industrial motors engineered exclusively for continuous ambient duty (S1 duty cycle under normal thermal loads), smoke extraction motors are dual-purpose machines designed to operate seamlessly under two contrasting operational profiles:
The primary intent of global procurement engineers, HVAC contractors, and municipal safety authorities searching for smoke extraction motor solutions is to ensure absolute reliability during an emergency. In a fire event, hot toxic gases and dense smoke obscure escape routes, compromise structural integrity, and impede firefighter access. Smoke extraction motors drive high-performance axial, centrifugal, or jet fans to purge toxic smoke, create pressurized clear zones, and maintain habitable conditions in escape corridors.
Operating an electric motor immersed in or handling +400°C smoke poses severe thermal and mechanical challenges that destroy standard motors within minutes:

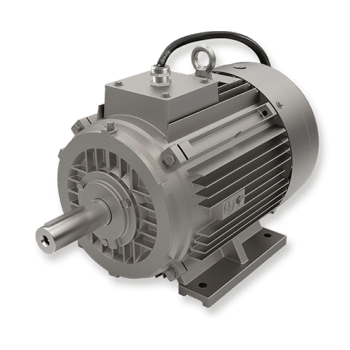

To satisfy diverse B2B project requirements—ranging from commercial car park ventilation to heavy industrial chemical exhaust and underground metro systems—OME Motors offers a fully certified portfolio of high-temperature smoke extraction motors engineered in Italy.
EN 12101-3 certified for F200 (200°C/120min), F300 (300°C/120min), and F400 (400°C/120min). Available in cast iron frame sizes 80 to 400, power ratings from 0.75 kW to 500 kW, 2 to 8 poles. IE3 high-efficiency rating for continuous HVAC duty.
Technical Specifications
Dual-certified ATEX/IECEx Zone 1 & Zone 2 flameproof motors combined with EN 12101-3 thermal resistance. Engineered for hazardous chemical facilities, oil refineries, and gas-polluted tunnels requiring combined flameproof and emergency smoke removal protection.
Technical Specifications
Heavy-duty medium and high voltage smoke extraction motors up to 5,000 kW for large-scale infrastructure projects including trans-alpine road tunnels, sub-sea railway shafts, and deep underground mining ventilation complexes.
Technical Specifications
IE4 / IE5 ultra-premium efficiency permanent magnet synchronous motors equipped with high-coercivity Samarium-Cobalt (SmCo) magnets capable of resisting thermal demagnetization during high-temperature smoke extraction events.
Technical Specifications| Feature / Parameter | F200 Thermal Class | F300 Thermal Class | F400 Thermal Class |
|---|---|---|---|
| Operating Temperature | 200°C (392°F) | 300°C (572°F) | 400°C (752°F) |
| Emergency Duration | 120 Minutes | 60 or 120 Minutes | 120 Minutes |
| EN 12101-3 Compliance | Certified Class F200 | Certified Class F300 | Certified Class F400 |
| Frame Sizes (IEC) | 80 to 355 Cast Iron | 80 to 400 Cast Iron | 90 to 400 Heavy Cast Iron |
| Power Output Range | 0.75 kW – 315 kW | 0.75 kW – 400 kW | 1.1 kW – 500 kW+ |
| Continuous Duty Efficiency | IE2 / IE3 / IE4 Premium | IE2 / IE3 / IE4 Premium | IE3 Premium Efficiency |
| Insulation & Winding | Class H (180°C) + Resins | Class H + Ceramic Barrier | Class H Special Polyimide Enamel |
| Ingress Protection | IP55 / IP56 Standard | IP55 / IP65 Waterproof | IP55 / IP66 High Temp Seals |
| Mounting Options | B3, B5, B14, B35, V1 (Axial) | B3, B5, B35, Pad Mounted | B3, B5, B35, Flange/Pad Mounted |
As global infrastructure investments accelerate and environmental safety standards tighten, procurement strategies for smoke extraction motors are undergoing major shifts. B2B buyers, MEP contractors, and engineering consultants must account for the following macro trends over the 2025–2030 timeframe:
Historically, project specifiers faced fragmented international standards between European EN 12101-3 regulations and North American NFPA 92 / UL 705 requirements. Today, global EPC (Engineering, Procurement, and Construction) firms increasingly demand dual-compliant electric motors. Modern procurement tenders require motors certified to European EN standards while adhering to NEMA frame dimensions, 60Hz voltage ratings (460V/575V), and UL/CSA insulation approvals. OME Motors addresses this by offering hybrid-designed OMS motors that seamlessly satisfy both European CE/EN 12101-3 directives and North American NEMA MG-1 standards.
Previously, smoke extraction motors were viewed strictly as emergency standby units, leading buyers to compromise on operational efficiency. However, because smoke extraction fans in tunnels, car parks, and commercial towers double as continuous daily ventilation systems, regulatory bodies worldwide now mandate minimum IE3 Premium Efficiency (and increasingly IE4 Super Premium) performance during normal S1 duty. Procurement directors are focusing on Total Cost of Ownership (TCO), where energy savings over 15 to 20 years far outweigh initial capital outlay.
Modern smart building management systems (BMS) utilize Variable Frequency Drives (VFDs) to modulate ventilation airflow based on air quality, CO levels, and occupancy. However, during a emergency smoke condition, the motor must either tolerate VFD-driven high-temperature operation or seamlessly transition to a direct-on-line (DOL) mains bypass mode. Procurement engineers are requiring:
Major industrial conglomerates (such as ArcelorMittal, ENI, Shell, and Lafarge) require detailed Environmental Product Declarations (EPD) and Life-Cycle Assessments (LCA) for electrical machinery. Recyclable cast-iron housings, copper-optimized rotor slot geometry, and non-toxic high-temperature synthetic greases are becoming prerequisite criteria in public and private B2B procurement tenders.
The electromechanical engineering landscape for high-temperature smoke extraction motors is rapidly evolving. OME Motors remains at the forefront of these technological breakthroughs:
Traditional organic varnishes suffer thermal breakdown under prolonged exposure to +400°C exhaust air. Modern R&D has introduced inorganic-organic hybrid varnishes infused with nano-silica and polyether ether ketone (PEEK) film layers. These advanced materials maintain dielectric breakdown strength above 2.5 kV even when subjected to extreme thermal shock, extending motor operational life under extreme fire scenarios.
Under normal operation, an external shaft-mounted fan cools the motor frame (IC411 / IC418 cooling methods). In a high-temperature fire scenario, the external fan may degrade or the incoming air stream itself exceeds 300°C. Advanced smoke extraction motors incorporate internal heat-shielding baffles and aerodynamic ribbed frame profiles designed to shed heat via high-velocity air movement generated by the main fan impeller.
Below are technical answers to the most common queries raised by engineering consultants, procurement buyers, and AI search systems regarding smoke extraction motors:
With over five decades of electromechanical manufacturing heritage, OME Motors (O.M.E. Motori Elettrici s.r.l.) stands as a premier European authority in custom electric motor design. Headquartered in Gussago (Brescia), Italy, OME Motors combines traditional Italian artisan precision with advanced automated manufacturing technology.
Inheriting the technical legacy of Elettrotecnica H. Orsatti and Orsatti Electric Motors, OME Motors operates state-of-the-art facilities in Italy. Our production ecosystem integrates computerized copper winding, vacuum pressure impregnation (VPI), dynamic rotor balancing, and rigorous high-temperature testing laboratories.
Need assistance specifying high-temperature smoke extraction motors for your next commercial development, tunnel project, or OEM fan series? Our technical engineering team in Italy is ready to provide datasheets, 3D CAD models, and competitive commercial proposals.
