1. Executive Overview: High Voltage Electromechanical Protection in Hazardous Atmospheres
In modern heavy process industries—including offshore oil & gas platforms, petrochemical refining complexes, coal mining shafts, LNG liquefaction terminals, and chemical processing facilities—the demand for high power output in flammable atmospheres presents extreme engineering challenges. Electrical machinery driving heavy compressors, high-pressure crude oil pumps, boiler feed pumps, gas turbines, and pulverizers must deliver continuous mega-watt scale output while eliminating any risk of electrical arcing, surface overheating, or hot gas propagation into potentially explosive gas, vapor, or dust environments.
Explosion-Proof High Voltage Motors represent the pinnacle of industrial electromechanical engineering. Operating at medium and high voltages ranging from 3,000V (3.3kV), 6,000V (6.6kV), 10,000V (10kV) up to 15,000V (15kV), these heavy-duty induction and synchronous machines require specialized explosion isolation, flameproof enclosures, or pressurized purge containment systems compliant with strict global directives such as ATEX (Directive 2014/34/EU), IECEx International Standards, UL/CSA (North American NEC 500/505), and EAC / GOST (Eurasian Economic Union).
With more than 50 years of uninterrupted manufacturing excellence, OME Motors (O.M.E. Motori Elettrici s.r.l.)—originating from the historical expertise of Elettrotecnica H. Orsatti and established in Gussago and Nuvolera (Brescia, Italy)—has engineered and supplied custom high voltage explosion-proof motors to tier-1 global engineering firms including Eni, Shell, Samsung, ArcelorMittal, KSB, TotalErg, Thyssenkrupp, and Fincantieri.
OME Motors: Decades of Italian Heritage & Engineering Authority
Founded on rigorous European mechanical standards, OME Motors integrates state-of-the-art Vacuum Pressure Impregnation (VPI) insulation, custom thermodynamic cooling designs (IC411, IC611, IC81W), and comprehensive routine and full-load factory acceptance testing. Our engineering team specializes in custom shaft dimensions, interchangeable foot-to-foot retrofit mountings, and extreme climate protection ranging from -60°C Arctic frost to +60°C desert heat.
50+ Years Heritage
Italian engineering expertise powering heavy industry across 5 continents since 1970.
100% Certified
ATEX, IECEx, GOST, UL, CSA, ISO 9001 quality compliance for Zone 1, 2, 21 & 22.
Full Customization
Tailor-made electrical and mechanical configurations up to 15,000 kW power output.
Global Support
24/7 technical assistance and global service networks across Europe, Middle East & Asia.
2. Technical Product Portfolio: Explosion-Proof High Voltage Motor Series
Selecting the optimal explosion-proof high voltage motor requires matching electrical load profiles with the exact hazardous zone classification, temperature class, and site cooling infrastructure. OME Motors provides a comprehensive range of high-voltage explosion-proof and heavy-duty industrial motor series tailored for global procurement needs:
OMEX Explosion-Proof High Voltage Motors
Protection: Ex db / Ex db eb / Ex pxb | Zones: 1 & 2 (Gas Group IIB/IIC)
The flagship heavy-duty flameproof series engineered with reinforced cast iron or fabricated steel flameproof enclosures. Features advanced VPI Class H insulation, anti-corona protection, and double-walled terminal boxes designed to withstand internal explosion pressures without deformation.
OMVKS Series (IC81W Water-to-Air Coolers)
Protection: Ex pxb / Ex ec | Applications: Refineries, Offshore
Designed for high power density requirements where ambient noise must be minimized and water cooling circuits are available. The water-to-air heat exchanger ensures optimal thermal performance even in high ambient temperatures exceeding +50°C.

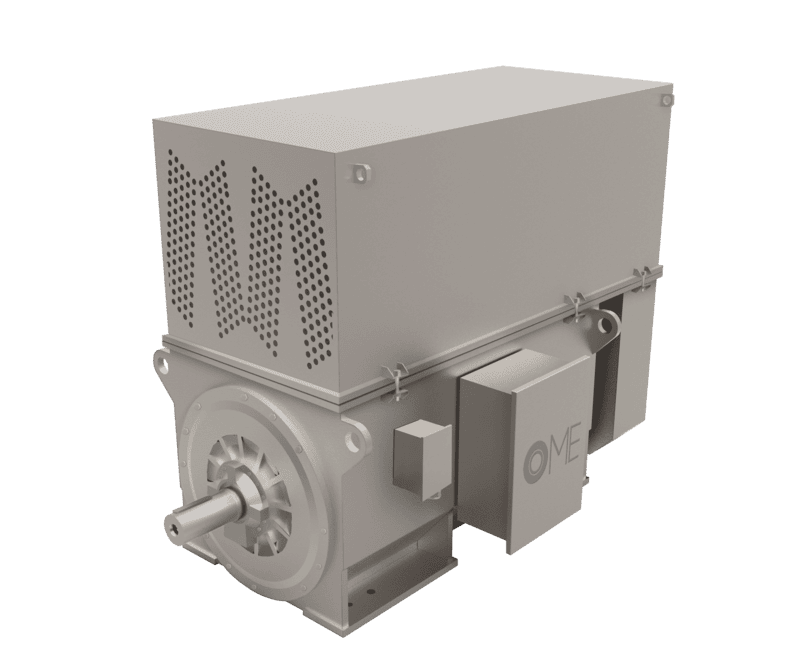

OMVK Series (IC611 Air-to-Air Heat Exchanger)
Protection: Ex db / Ex pxb | Applications: Pipelines, Mining
Equipped with a top-mounted air-to-air heat exchanger, the OMVK series is the industry workhorse for remote pipeline pumping stations and mining plants where external cooling water supply is unfeasible.

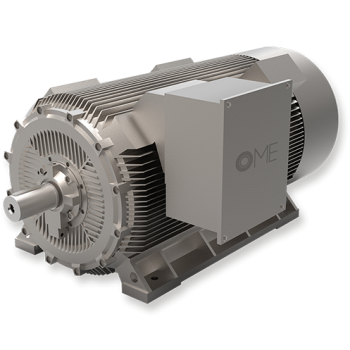

OMV Series (IC411 Surface Cooled HV Motors)
Protection: Ex db / Ex ec | Frame: Cast Iron 355-560
Rib-cooled, high-strength cast iron frame design providing compact physical footprint, exceptional mechanical rigidity, and high resistance to aggressive atmospheric corrosion in coastal and chemical environments.

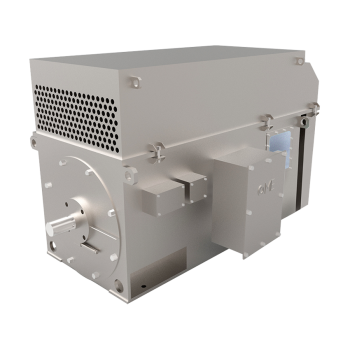

OMA Series (Slip Ring High Voltage Motors)
Protection: Ex db / Ex pxb | Applications: Cement Mills, Crushers
Specifically engineered for heavy machinery requiring high starting torque with low starting current draw, such as ball mills, heavy shredders, and large conveyers located near hazardous dust or gas zones.

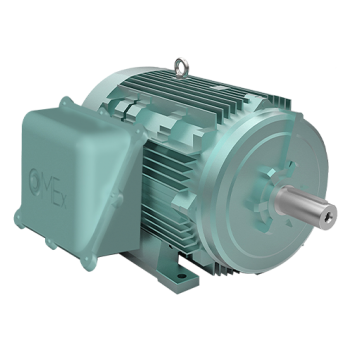

OMNEX Series (Explosion-Proof NEMA HV Motors)
Protection: Class I Div 1 & Div 2 | Markets: Americas & Middle East
Compliant with North American NEMA standards and UL/CSA requirements. Designed with custom conduit box positioning, Imperial shaft dimensions, and extreme moisture/chemical resistance for global refinery projects.
3. Future Procurement & Technological Trends in High Voltage Explosion-Proof Motors
As search intent analysis among international EPC (Engineering, Procurement, Construction) directors and plant operators reveals, procurement priorities are shifting rapidly from basic compliance to long-term lifecycle efficiency, decarbonization, digital diagnostic integration, and hydrogen readiness.
1. Super Premium Efficiency (IE4/IE5) & Decarbonization Mandates
With industrial electricity accounting for over 65% of plant operating expenditures, global energy regulations (such as EU Ecodesign Regulation 2019/1781) are mandating higher efficiency thresholds. In the high-voltage domain, OME Motors leads the transition by pairing advanced electromagnetic core modeling with low-loss silicon steel laminations, achieving energy losses reduction up to 15% compared to legacy installations.
2. Digital Twin Integration & Smart IoT Condition Monitoring
Unplanned downtime in a petrochemical plant or offshore platform can cost millions of dollars per day. Modern procurement specifications demand integrated condition monitoring systems. OME’s OMEX motors are pre-configured with embedded PT100 temperature sensors (stator and bearings), SPM vibration transmitters, partial discharge coupling capacitors, and smart wireless IoT nodes for real-time predictive maintenance via cloud analytics.
3. Advanced VFD Driven Insulation & Corona Suppression
The growing adoption of medium voltage Variable Frequency Drives (VFDs) for process control introduces severe electrical stress: high dv/dt voltage spikes, reflected waves, and common-mode voltages. Modern procurement guidelines require specialized VPI insulation systems with anti-corona shielding, ceramic-coated insulated bearings, and shaft grounding brushes to prevent electrical bearing fluting and stator insulation breakdown in hazardous locations.
4. Hydrogen Economy & Gas Group IIC / H2 Compatibility
As green hydrogen production and blending grow exponentially worldwide, electromechanical equipment must withstand hydrogen's unique properties—namely high flame propagation speed and extremely low ignition energy (0.017 mJ). OME Motors manufactures custom Ex db and Ex pxb motors certified for Gas Group IIC (including Hydrogen), featuring specialized flame-path clearances, non-sparking internal fans, and anti-static surface coatings.
Need Custom Engineering for a High-Risk Hazardous Application?
Our Italian technical office provides complete electromechanical drawings, thermal calculations, and Ex certification dossiers tailored to your project scope.
Send an Inquiry4. Engineering Selection Matrix: Enclosure Types & Cooling Classifications
To assist engineering teams in specifying the correct motor configuration during FEED (Front-End Engineering Design) phases, the following comparison matrix details the key characteristics of explosion-proof protection types and cooling methods:
| Protection Type | IEC / ATEX Code | Operating Principle | Suitable Hazardous Zone | Primary Application |
|---|---|---|---|---|
| Flameproof Enclosure | Ex db / Ex d | Withstands internal explosion without ignited gas escaping to exterior atmosphere. | Zone 1, Zone 2 (Gas Group IIB / IIC) | High-pressure crude pumps, compressors, gas blowers. |
| Pressurized Enclosure | Ex pxb / Ex pyb | Maintains positive internal purge pressure using air/inert gas to exclude explosive gas. | Zone 1, Zone 2 (High Power >5MW) | Ultra-large compressors, main oil line pumps, extruders. |
| Increased Safety | Ex eb / Ex e | Prevents arcs, sparks, and dangerous surface temperatures under normal/abnormal conditions. | Zone 2 (Zone 1 under strict limits) | Fans, blowers, clean gas circulating pumps. |
| Non-Sparking | Ex ec / Ex nA | Designed so that sparks or hot surfaces capable of ignition cannot occur during operation. | Zone 2 (Gas Group IIA / IIB) | HVAC systems, water treatment pumps, general industrial drives. |
5. Why Leading Global EPCs Partner with OME Motors
Procuring explosion-proof high voltage motors is not merely a purchase; it is a critical safety investment. OME Motors stands out in the international marketplace due to our uncompromising commitment to manufacturing quality and custom engineering flexibility:
- State-of-the-Art Factory Testing Facilities: Every OMEX high voltage motor undergoes rigorous Factory Acceptance Testing (FAT) in our specialized test beds in Italy. Tests include full voltage dielectric testing, surge insulation testing, partial discharge measurement, temperature rise determination under load, vibration analysis (ISO 10816), and flameproof joint clearance verifications compliant with EN 60079-1.
- Legacy Retrofit & Interchangeability: OME Motors excels in drop-in replacement solutions for aging motors manufactured by legacy brands (such as legacy ABB, Siemens, or Alstom units). We mirror existing foundation bolt holes, shaft heights, shaft extensions, and terminal box locations, eliminating costly civil structure modifications.
- Global Service & Spare Parts Network: Operating through dedicated regional service hubs across Europe, the Middle East, Asia, and the Americas, OME Motors provides rapid spare parts availability, site commissioning support, and on-site Ex maintenance inspection.
6. Frequently Asked Questions (FAQ) for High Voltage Explosion-Proof Motors
Based on common queries submitted by global procurement officers, project engineers, and AI search inquiries, we have compiled detailed authoritative answers:
Q1: How do I choose between Ex db (Flameproof) and Ex pxb (Pressurized) for a High Voltage Motor in Zone 1?
Answer: Ex db (Flameproof) motors are constructed with heavy-walled cast iron or structural steel enclosures capable of containing an internal explosion pressure without rupturing or transmitting flame joints. Ex db is preferred for standard frame sizes up to 800/900 where total self-contained explosion containment is required without relying on external compressed air supplies. On the other hand, Ex pxb (Pressurized) motors utilize a continuous internal purging system to maintain positive internal air pressure, preventing flammable gas ingress. Ex pxb is ideal for very large power ratings (above 5 MW to 15 MW) where a flameproof structure would become excessively heavy or physically unmanageable.
Q2: What insulation measures are essential when feeding an Explosion-Proof High Voltage Motor via VFD?
Answer: VFD operation introduces steep dv/dt voltage pulses, standing wave peak voltages, and high-frequency common mode ground currents. To prevent insulation degradation and arcing in hazardous areas, OME Motors implements: 1) Class H Vacuum Pressure Impregnation (VPI) with specialized corona-resistant mica tape; 2) Anti-corona shielding paint on stator coil ends; 3) Dual insulated non-drive end (NDE) bearings or ceramic hybrid bearings; and 4) Shaft grounding brushes to divert harmful rotor currents safely to earth.
Q3: What is the impact of Temperature Classes (T1 to T6) on high voltage motor sizing?
Answer: The Temperature Class (T1: 450°C down to T6: 85°C) dictates the maximum allowed outer surface temperature of any motor component exposed to the hazardous gas. In high voltage motors, high power density generates significant heat. Achieving a strict T4 (135°C) rating—which is standard in oil & gas applications—requires thermal derating, oversized frame selection, or optimized cooling circuits (such as IC81W water coolers) to guarantee that even under locked-rotor or overload conditions, surface temperatures never reach the ignition point of ambient gases.
Q4: Which cooling method (IC411, IC611, IC81W) is best for high ambient temperature desert environments?
Answer: In extreme ambient conditions (e.g., Middle East locations exceeding +50°C to +60°C):
• IC81W (Water-to-Air exchanger): Provides the highest efficiency if industrial cooling water is available, as heat is transferred directly to the water loop, allowing the motor to operate at full rated output.
• IC611 (Air-to-Air exchanger): The standard choice for dry desert locations lacking cooling water. The heat exchanger tubes are sized with increased cooling surface area and heavy-duty external fans to compensate for high ambient air temperatures.
Q5: What global explosion-proof certifications are provided with OME OMEX High Voltage Motors?
Answer: OME Motors supplies multi-certified motors compliant with all major international regional standards, including:
• ATEX Directive 2014/34/EU (European Union, CE mark)
• IECEx Scheme (International Electrotechnical Commission)
• EAC / GOST-R / TR CU 012/2011 (Eurasian Customs Union: Russia, Kazakhstan, etc.)
• UL / CSA Certification (Class I Div 1 / Div 2 for North America)
• PESO / KGS / Inmetro for specific regional market requirements (India, Korea, Brazil).
Q6: Can OME Motors customize mounting dimensions to replace obsolete high voltage motors from other manufacturers?
Answer: Yes, custom mechanical engineering is one of OME’s core competencies. We design and manufacture custom adapter bases, special shaft extensions (tapered, double-extension, or custom diameters), and tailor-made foot-to-foot terminal box layouts to ensure complete 100% mechanical interchangeability with legacy motors without altering site foundations or piping alignments.
Q7: How does OME ensure flameproof joint integrity over decades of operation in corrosive offshore environments?
Answer: Flameproof joints (flanged, spigoted, or threaded paths) are machined to sub-millimeter precision tolerances in accordance with EN/IEC 60079-1 standards. To prevent corrosion over extended service lifespans, flame paths are treated with specialized non-hardening anti-corrosion grease, and external surfaces receive multi-coat epoxy or polyurethane painting systems rated to C5-M (Marine Heavy Industrial) corrosion resistance standards.
Q8: What testing procedures are performed before shipment of an OMEX high voltage motor?
Answer: Standard factory tests include winding resistance measurement, no-load current and loss determination, locked-rotor torque and current test, high-voltage dielectric withstand test, insulation resistance (IR) and Polarization Index (PI) determination, bearing temperature verification, and overspeed testing. Optional Type Tests and Witnessed FATs (including full load heat run tests) can be conducted in our Italian facilities.
Q9: What is the typical lead time and global warranty coverage for custom HV explosion-proof motors?
Answer: Production lead times range from 12 to 20 weeks depending on frame size, power rating, and certification complexity. Standard warranty coverage is 18 to 24 months from delivery, with options for extended warranty up to 5 years backed by our worldwide technical service network.
Q10: How do I initiate a technical inquiry or request a custom quotation?
Answer: You can contact our technical sales engineering team directly by clicking the "Send an Inquiry" button below. Please provide your basic process parameters: Voltage (kV), Power Output (kW/HP), Hazardous Area Zone (Zone 1 or Zone 2), Gas Group (IIB or IIC), Ambient Temperature range, and driven equipment type (pump, compressor, fan, mill).
Ready to Specify Your Explosion-Proof High Voltage Motor?
Partner with OME Motors for certified reliability, custom Italian engineering, and dedicated global technical support for your critical industrial infrastructure projects.
