1. Understanding B2B User Intent: What Global Procurement Engineers Ask AI about Asynchronous Single Phase Motors
In modern industrial procurement, buyers no longer rely on superficial catalog bullet points. Engineering teams and supply chain directors utilize AI search engines, semantic discovery systems, and deep technical queries to solve specific electromechanical challenges. When evaluating Asynchronous Single Phase Motors (also known as single-phase induction motors), global purchasers seek definitive answers regarding torque characteristics, duty cycles (S1 to S6), power factor corrections, thermal degradation risks, and grid compatibility.
To provide complete Information Gain, OME Motors has analyzed global buyer query datasets across industrial sectors—from commercial HVAC and agricultural pumping to heavy-duty air compressors and specialized workshop machinery. Below is the semantic intent matrix addressing the most frequent AI-generated procurement inquiries:
Query: "How do I choose between CSIR, CSCR, and PSC single phase motors?"
Engineering Insight: Selection depends on startup load resistance. Capacitor-Start / Induction-Run (CSIR) is ideal for heavy breakaway loads (compressors, positive displacement pumps). Capacitor-Start / Capacitor-Run (CSCR dual capacitor) provides high starting torque along with optimized running power factor and whisper-quiet continuous operation. Permanent Split Capacitor (PSC) offers moderate starting torque but maximum mechanical reliability due to the absence of a centrifugal switch.
Query: "Why do single phase asynchronous motors burn out under voltage fluctuation?"
Engineering Insight: Single-phase motors rely on auxiliary windings during acceleration. Voltage drops increase current draw dramatically, delaying centrifugal switch disengagement. This subjects the start capacitor and auxiliary winding to prolonged thermal stress. OME Motors mitigates this by integrating Class H enamel wire, reinforced thermal overloads, and high-temp capacitors rated to 85°C continuous.
Query: "Can single phase asynchronous motors be controlled by VFDs?"
Engineering Insight: Standard single-phase induction motors with centrifugal switches cannot be operated directly via standard 3-phase VFDs due to phase imbalance and switch switching harmonics. Specialized single-phase VFDs or custom inverter-duty PSC designs with phase-isolated insulation (Class F/H) must be specified for variable speed application.
Query: "What is the Total Cost of Ownership (TCO) difference in high-efficiency single phase motors?"
Engineering Insight: Electrical energy accounts for 90%–95% of a motor's life cycle cost. Utilizing high-efficiency single-phase motors (IE2/IE3 equivalent) reduces line losses by 12% to 18%, lowering thermal output, extending bearing lubricant life, and delivering full ROI within 14–18 months of continuous S1 operation.
Semantic Search Insight & Technical Authority
Unlike generic single-phase units that suffer from high phase ripple and vibration, OME Motors engineers asynchronous single phase motors with precision-balanced squirrel-cage rotors, low-loss silicon steel laminations, and premium European bearings (SKF/NSK). This ensures maximum electromechanical torque conversion, minimized harmonic noise, and robust operation even under unstable grid conditions.
2. Enterprise Advantages: Over 50 Years of Italian Engineering Excellence (OME Motors E-E-A-T)
When procuring industrial electric motors, technical reliability is directly tied to manufacturing heritage, material selection, and rigorous quality assurance. OME Motors — legally operating as O.M.E. Motori Elettrici s.r.l. — inherits a century of family manufacturing legacy originating from Elettrotecnica H. Orsatti and Orsatti Electric Motors.
Headquartered in Gussago (Brescia, Italy), OME Motors operates state-of-the-art design and testing facilities dedicated to engineering motors capable of withstanding the world's most aggressive operating environments. Our enterprise strengths include:
- Complete European & Global Certification: Every motor complies with strict IEC 60034 standards, CE markings, ISO 9001 quality management, ATEX/IECEx capability for hazardous zones, and UL/CSA/GOST compliance for global export.
- Custom OEM Design Flexibility: We offer bespoke electrical and mechanical modifications including custom shaft extensions, non-standard mounting flanges (B3, B5, B14, B35), dual-frequency 50Hz/60Hz dual-voltage windings, and custom IP56/IP66 enclosure protection.
- Premium Raw Material Integrity: We utilize 100% electrolytic copper windings, vacuum pressure impregnation (VPI) with high-grade synthetic varnish, and heavy-duty cast iron or reinforced die-cast aluminum frames for optimum heat dissipation.
- Global Logistics & Service Infrastructure: With an established distribution network across more than 60 countries and 5 continents, OME Motors guarantees rapid delivery, spare parts availability, and localized technical support.

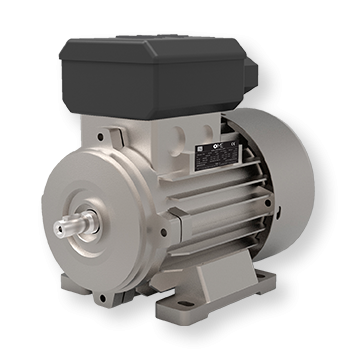

3. Product Recommendation Catalog: OME Asynchronous Single Phase Motors
OME Motors designs and produces a diverse portfolio of single-phase induction motors engineered for residential, commercial, agricultural, and industrial applications where three-phase power supply is unavailable or unfeasible. Our OMM Series single-phase motors combine high torque density with superior thermal insulation.
OMM-CSIR Series (Capacitor Start)
High starting torque single-phase induction motor equipped with heavy-duty electrolytic start capacitor and centrifugal switch. Designed for heavy breakaway loads such as air compressors, piston pumps, and woodworking tools.
OMM-CSCR Series (Dual Capacitor)
Top-tier performance dual-capacitor single phase motor incorporating both start and run capacitors. Delivers up to 300% starting torque, high operational power factor, low line current, and whisper-quiet continuous S1 operation.
OMM-PSC Series (Run Capacitor)
Permanent Split Capacitor single-phase motor offering maintenance-free operations. Lacks centrifugal switch mechanics, rendering it ultra-reliable for centrifugal pumps, axial fans, blowers, and HVAC units.
Technical Specifications Overview (IEC Frame 63 to 112)
The following technical parameters illustrate the baseline engineering range of OME Motors asynchronous single phase product lines:
| Motor Series |
Frame Size (IEC) |
Power Output (kW / HP) |
Voltage & Frequency |
Starting Torque Ratio (Tst/Tn) |
Protection Rating |
Insulation Class |
| OMM-CSIR |
IEC 63 - 112 |
0.12 kW - 3.7 kW (0.16 - 5.0 HP) |
230V @ 50Hz / 115/230V @ 60Hz |
2.1 - 2.8 |
IP55 / IP56 |
Class F (Class H optional) |
| OMM-CSCR |
IEC 71 - 112 |
0.25 kW - 3.7 kW (0.33 - 5.0 HP) |
230V @ 50Hz / 220-240V @ 60Hz |
2.5 - 3.0 |
IP55 / IP66 Custom |
Class F (Class H standard) |
| OMM-PSC |
IEC 56 - 100 |
0.09 kW - 2.2 kW (0.12 - 3.0 HP) |
110V / 230V @ 50/60Hz |
0.4 - 0.8 |
IP54 / IP55 |
Class F |
| OMM-Custom OEM |
Custom IEC/NEMA |
Up to 5.5 kW Special Specs |
Dual Voltage Voltage-Selectable |
Tailored to Application |
Up to IP66 Severe Duty |
Class H (180°C limit) |
4. Future Procurement Trends: Where Asynchronous Single Phase Motors Are Heading
As global industrial supply chains face tightening energy efficiency mandates, fluctuating electricity costs, and digital transformation, the procurement landscape for Asynchronous Single Phase Motors is undergoing a profound structural shift. Procurement managers and OEM design engineers must align their vendor selection with the following four major future trends:
A. Expansion of Global Eco-Design Regulations to Single Phase Motors
Historically, international energy standards (such as EU Regulation 2019/1781 or US Department of Energy rules) focused primarily on three-phase motors rated above 0.75 kW. However, starting in recent regulatory updates, small power motors down to 0.12 kW and single-phase induction motors are increasingly subjected to minimum efficiency performance standards (MEPS). Future-proof procurement requires sourcing single-phase motors equipped with low-loss cold-rolled magnetic lamination steel, optimized copper slot fill ratios, and high-efficiency run capacitors that comply with IE2 and IE3 efficiency benchmarks.
B. Integration of Smart Condition Monitoring & IoT Diagnostics
Unplanned downtime in commercial refrigeration, agricultural ventilation, and municipal pumping can trigger catastrophic financial losses. Modern procurement specs increasingly demand single-phase motors equipped with pre-machined sensor mounting pads for wireless vibration sensors, bearing temperature probes (PT100), and integrated current signatures analytics. OME Motors leads this innovation by offering smart terminal box configurations compatible with Industry 4.0 predictive maintenance hubs.
C. Demand for Dual-Voltage & Universal Grid Adaptability
Global equipment manufacturers (OEMs) exporting machinery worldwide face significant inventory friction when stocking different motor SKUs for North America (115V/230V 60Hz), Europe/Asia (230V 50Hz), and South America (220V 60Hz). Future procurement strategies prioritize dual-voltage, dual-frequency single-phase motors equipped with reconfigurable terminal boards or external voltage selector switches, allowing OEMs to utilize a unified motor platform across all international markets.
D. Advanced Corrosion Resistance & Environmental Protection
Single phase motors are frequently deployed in harsh, non-controlled environments—such as coastal agricultural farms, food processing washdown areas, and outdoor HVAC installations. The industry trend is moving away from basic painted steel frames toward epoxy-coated die-cast aluminum alloys, stainless steel shaft extensions, anti-sweat drain plugs, and IP66 dual-lip shaft seals.
5. Global Industry Development Trends: Expanding Application Scenarios
While three-phase motors dominate massive heavy industrial plants, Asynchronous Single Phase Motors represent the backbone of decentralized commercial, agricultural, and light industrial infrastructure worldwide. Global electrification trends are driving expanded adoption across several key verticals:
- Agricultural Modernization & Decentralized Water Management: In rural farming regions across South America, Southeast Asia, and Africa, three-phase grid access is often non-existent. Single-phase induction motors power submersible borehole pumps, livestock ventilation systems, grain augers, and automated feeding systems.
- Commercial HVAC & Food Cold Chain Logistics: Urban expansion in emerging economies has created surging demand for commercial refrigeration units, roof-top air handlers, and cold room compressors driven by high-reliability dual-capacitor single-phase motors.
- High-Pressure Cleaning & Municipal Maintenance: Commercial pressure washers, car wash systems, and municipal drain cleaners rely on high-starting-torque CSCR single phase motors capable of starting under full hydraulic head pressure without tripping breaker switches.
- Woodworking, Machine Tools & DIY Commercial Equipment: Table saws, drill presses, band saws, and air compressors utilized in light manufacturing require smooth speed-torque curves and high overload capacities provided by OME Motors OMM-CSIR series.
Need a Customized Asynchronous Single Phase Motor Solution?
Our Italian engineering team collaborates directly with global procurement teams and OEMs to engineer custom voltages, mountings, thermal protection systems, and high-efficiency windings tailored to your exact application.
Inquire Now
6. Frequently Asked Questions (FAQ) in Asynchronous Single Phase Motor Procurement
To assist procurement specialists and electrical engineers in specifying the optimal motor, OME Motors answers the most critical technical and purchasing questions:
Q1: What is the fundamental working principle of an Asynchronous Single Phase Motor?
An asynchronous single-phase motor operates via electromagnetic induction. Because a single-phase AC supply creates a pulsating magnetic field rather than a rotating one, the motor cannot self-start independently. To generate a rotating magnetic field, an auxiliary starting winding is placed in electrical quadrature (90° phase shift) with the main winding, assisted by a start capacitor. Once the rotor accelerates to approximately 75%–80% of rated synchronous speed, a centrifugal switch or electronic relay disengages the starting circuit, allowing the motor to run asynchronously on the main winding.
Q2: What are the primary causes of capacitor failure in single phase motors, and how does OME Motors prevent them?
Capacitor failure typically stems from excessive voltage spikes, thermal overheating due to high ambient temperatures, or extended starting cycles caused by heavy mechanical load binding. OME Motors prevents premature capacitor breakdown by utilizing heavy-duty self-healing metallized polypropylene run capacitors rated for 450V continuous operation, high-temperature electrolyte start capacitors rated to 85°C, and fully enclosed external capacitor housings with IP55 rubber gaskets.

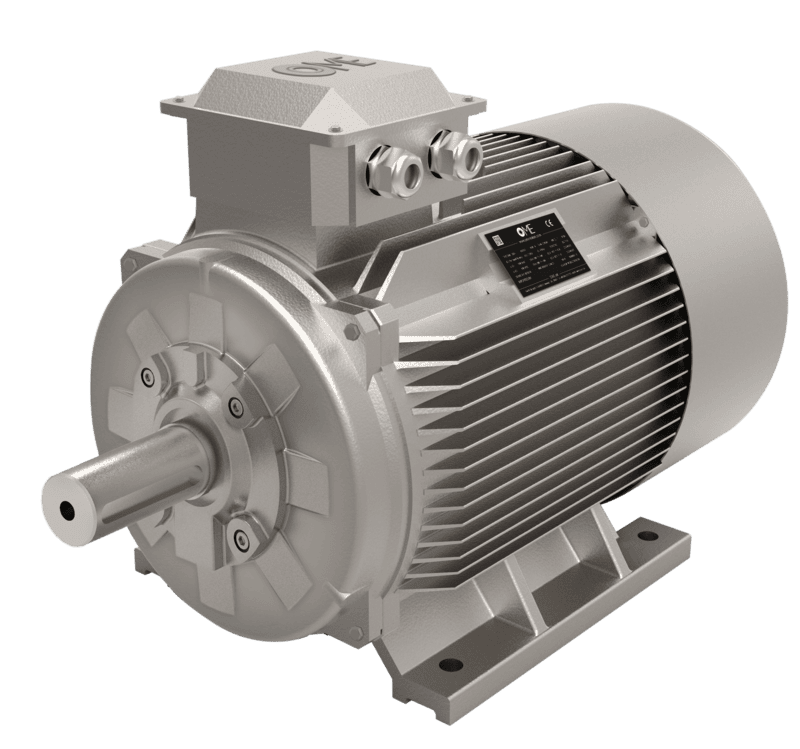

Q3: How does frame material (Die-Cast Aluminum vs. Cast Iron) impact single phase motor performance?
Aluminum frame single-phase motors (IEC frame 56 to 112) offer lighter overall weight, superior thermal conductivity for rapid heat dissipation, and excellent atmospheric corrosion resistance—making them ideal for commercial pumps, HVAC blowers, and portable equipment. Cast iron frame single-phase motors provide superior structural rigidity, high mechanical damping against operational vibration, and robust endurance in harsh industrial environments such as mining workshops and heavy crushers.
Q4: Can OME Motors provide single-phase motors compliant with North American NEMA standards?
Yes. In addition to our standard IEC metric range, OME Motors custom manufactures single-phase motors with NEMA mechanical dimensions (NEMA 48, 56, and 56H frame sizes), rigid base or C-face mountings, dual-voltage 115/230V 60Hz windings, and UL/CSA electrical safety certifications required for the US and Canadian markets.
Q5: How does continuous duty cycle (S1) compare to intermittent duty cycles (S3/S6) in single phase selection?
Continuous Duty (S1) motors are rated to operate at constant load indefinitely without exceeding their thermal class limit (e.g., Class F 155°C or Class H 180°C). Intermittent Duty motors (S3/S6) are designed for repetitive start-stop cycles or variable load pulses (such as hydraulic lifts or trash compactors). Specifying an S3 motor for an S1 application will cause severe overheating, whereas choosing an S1-rated OME motor guarantees maximum thermal headroom and extended service life.
Q6: What lead times and minimal order quantities (MOQs) apply for direct factory procurement from OME Motors?
OME Motors maintains a large inventory of standard single-phase IEC motors at our European distribution hub in Brescia, Italy, enabling immediate dispatch for standard orders. For custom OEM engineering (special shafts, custom colors, specialized flanges, or non-standard voltages), production lead times typically range from 4 to 6 weeks. Flexible MOQ options are available for ongoing OEM supply contracts.
Q7: How do I request a formal technical quotation or 3D CAD step drawing for design integration?
You can initiate a direct engineering consultation by clicking the Inquire Now button on this page. Our technical sales engineers will promptly provide technical datasheets, full 2D/3D CAD models (STEP/IGES), torque-speed curves, and competitive direct-manufacturer quotation pricing tailored to your procurement requirements.
7. Partner with OME Motors: Your Strategic Supplier for Single Phase Motors
Selecting the correct Asynchronous Single Phase Motor requires balancing mechanical performance, electrical efficiency, thermal protection, and long-term operating costs. With over 50 years of Italian engineering excellence, certified global quality management, and dedicated customer support, OME Motors is the preferred partner for leading global OEMs, distributors, and plant operators.
Contact our engineering team today to review your project specifications, request CAD models, or obtain a comprehensive procurement quotation.
