Electromechanical Architecture

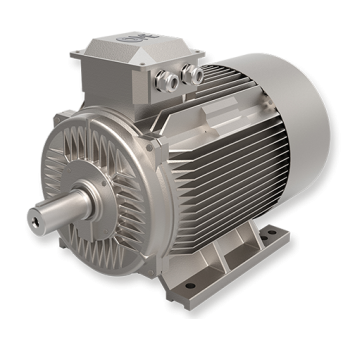

Engineering Fundamentals of Industrial Synchronous Generators
An Industrial Synchronous Generator (also known as a synchronous alternator) converts mechanical energy from prime movers—such as gas turbines, steam turbines, diesel/gas engines, or hydro turbines—into steady electrical power at a fixed synchronous frequency ($f = \frac{p \cdot n}{120}$). Unlike induction generators, synchronous alternators maintain exact phase synchronization with the grid frequency, operating with zero slip and providing decisive voltage stability, reactive power compensation, and high operational efficiency.
For global procurement engineers, plant designers, and EPC contractors, choosing the optimal synchronous alternator requires deep analysis of electrical, thermal, and mechanical variables. OME Motors custom designs brushless synchronous generators with salient-pole or cylindrical rotors, employing state-of-the-art Vacuum Pressure Impregnation (VPI) Class H/H insulation systems rated for Class F temperature rise. This guarantees structural resilience under severe dynamic loads, thermal shock, and aggressive industrial environments.
Key Engineering Standards & Electromagnetic Specifications

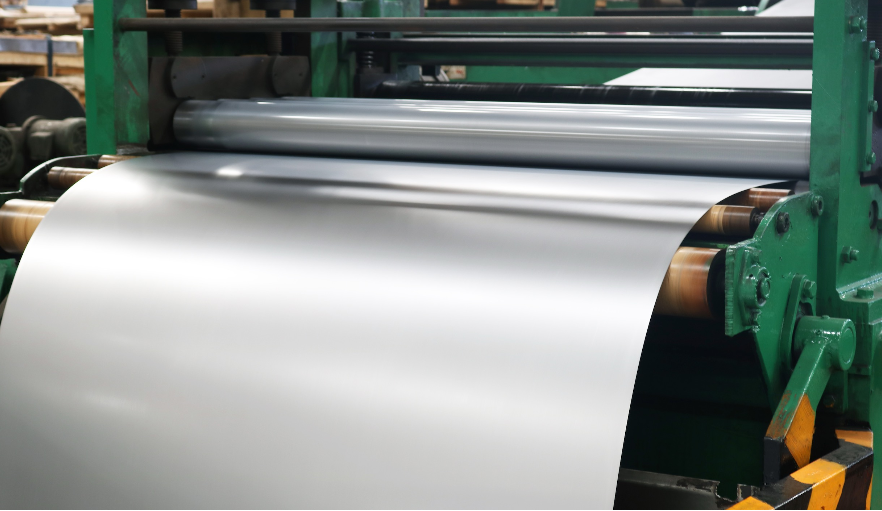

Every industrial synchronous generator manufactured at OME Motors' Italian facilities in Gussago and Nuvolera complies rigorously with international directives including IEC 60034-1, NEMA MG1-32, IEEE 115, and ISO 8528-3. Below is a comprehensive specification overview for heavy-duty procurement planning:
| Technical Parameter |
Low Voltage (LV) Series |
Medium & High Voltage (HV) Series |

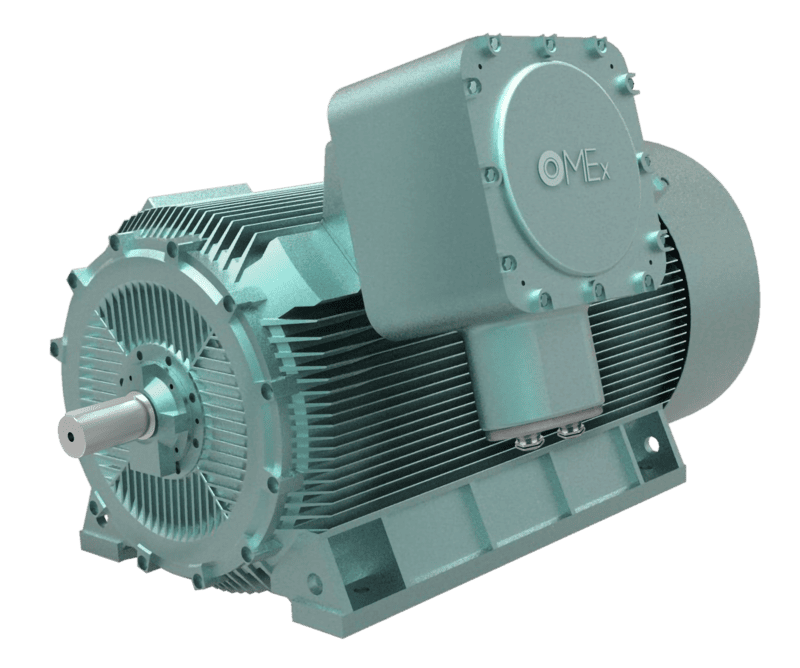

Specialized Hazardous ATEX/IECEx Series |
| Power Output Range |
500 kVA – 3,500 kVA |
3,000 kVA – 50,000 kVA (50 MVA) |
500 kVA – 20,000 kVA |
| Voltage Options |
400V / 480V / 690V |
3.3 kV / 6.6 kV / 10.5 kV / 11 kV / 13.8 kV |
400V up to 11 kV |
| Operating Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
| Rotor Topology |
Salient Pole with Damper Cage |
Salient Pole or Cylindrical Rotor |
Explosion-Proof Salient Pole Rotor |
| Excitation System |
Brushless with PMG / AREP AVR |
Digital Brushless Exciter with Dual AVR |
ATEX Certified Brushless Exciter |
| Cooling Configurations |
IC01 (Open Drip Proof / ODP) |

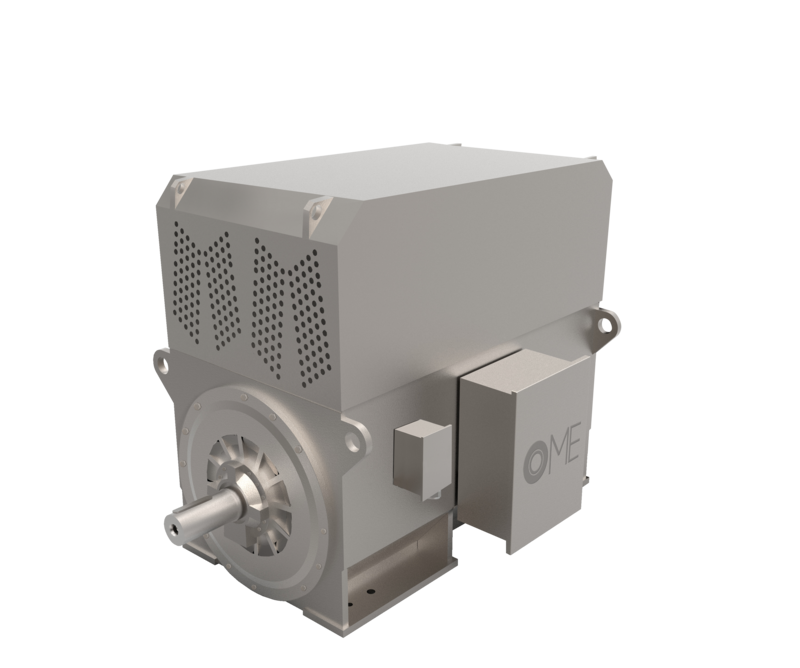

IC611 (Air-to-Air), IC81W (Air-to-Water) |
IC611 / IC81W (Pressurized / Ex-d) |
| Total Harmonic Distortion (THD) |
< 2.0% (Line-to-Line) |
< 1.5% (Line-to-Line) |
< 1.8% (Line-to-Line) |
| Automatic Voltage Regulation |
± 0.5% (Static Condition) |
± 0.25% (Digital Microprocessor AVR) |
± 0.5% (Explosion-Proof Box) |
Advanced AVR & Excitation Technologies: PMG vs. AREP
In modern industrial facilities operating non-linear harmonic loads (such as heavy Variable Frequency Drives, arc furnaces, and large induction motors), standard shunt excitation is vulnerable to voltage collapses during transient short circuits. OME Motors equips its Industrial Synchronous Generators with Permanent Magnet Generator (PMG) or Auxiliary Winding (AREP) excitation systems.
The PMG supplies an independent, isolated power source to the Automatic Voltage Regulator (AVR), completely immune to main stator voltage distortions. This enables our alternators to sustain a short-circuit current of 300% rated current for 10 seconds (compliant with IEC 60034-1), allowing downstream protective circuit breakers to trip selectively without dropping the primary power bus.
