Executive Summary & Technical Foundations: High Voltage Motors IP23 IC01
In modern heavy industrial facilities, selecting the optimal electromechanical driving system requires balancing capital expenditure (CAPEX), operational energy efficiency (OPEX), thermal management, and physical space constraints. Among high voltage electric motors operating from 3.3 kV up to 11 kV (and up to 13.8 kV), High Voltage Motors IP23 IC01 represent the gold standard for high-power industrial machinery operating in clean, controlled indoor or sheltered environment.
Designated under International Electrotechnical Commission standard IEC 60034-5 for ingress protection and IEC 60034-6 for cooling methodology, the IP23 IC01 configuration combines Open Drip-Proof (ODP) mechanical enclosure characteristics with direct open-circuit self-ventilation cooling. This specific electromechanical arrangement allows plant designers to achieve maximum kilowatt (kW) output from a significantly smaller frame size compared to totally enclosed motor topologies such as IC411 (TEFC) or IC611 (CWAO).
Semantic Definition & Engineering Classifications:
- IP23 Protection Rating: Protection against finger access or solid objects greater than 12.5 mm in diameter, combined with protection against direct water spray falling at any angle up to 60° from the vertical.
- IC01 Cooling Method: Open-circuit self-ventilation using an internal shaft-mounted fan that draws ambient air directly through the motor interior, over the stator windings, and across the rotor cooling ducts.
By eliminating intermediate heat exchangers—such as air-to-air cooling tubes (IC611) or air-to-water heat exchangers (IC81W)—high voltage IP23 IC01 motors achieve direct thermal convective cooling. The thermal resistance between the electromagnetic active materials (copper conductors and silicon steel laminations) and the ultimate cooling medium (ambient air) is dramatically minimized. Consequently, for applications installed in clean indoor environments, power stations, boiler rooms, and filtered compressor halls, high voltage motors IP23 IC01 offer superior power density, reduced weight, and outstanding dynamic response.

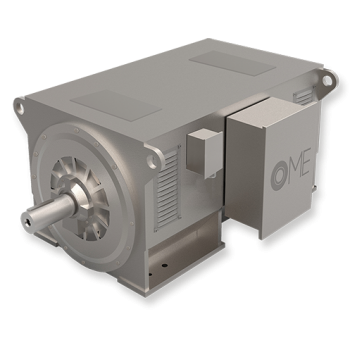

Product Recommendation: OME Motors OMVP High Voltage IP23 IC01 Series
As a premier European industrial electric motor manufacturer, OME Motors delivers the flagship OMVP Series—a high-efficiency open drip-proof three-phase induction motor line engineered specifically for continuous duty (S1) under heavy mechanical loads. Built upon more than 50 years of Italian electromechanical heritage, the OMVP line sets industrial benchmarks for mechanical rigidity, electrical endurance, and operational safety.
Detailed Technical Specification Matrix: OMVP IP23 IC01 Motors
Below is the baseline engineering specification matrix for global procurement engineers evaluating OME Motors' High Voltage IP23 IC01 product line:
| Engineering Parameter | OMVP Series Technical Specification |
|---|---|
| Rated Power Output (kW) | 220 kW to 10,000+ kW (Custom frame sizes up to 12 MW) |
| Rated Operating Voltage (V) | 3,000 V (3 kV), 3,300 V, 6,000 V (6 kV), 6,600 V, 10,000 V (10 kV), 11,000 V (11 kV) |
| Supply Frequency | 50 Hz / 60 Hz (Inverter Duty available for VFD operation) |
| Number of Poles / Speeds | 2-Pole (3000/3600 rpm) up to 16-Pole (375/450 rpm) & Multi-speed options |
| Frame Sizes (IEC) | IEC 355 to IEC 1000 Frame (Welded Steel Box Structure) |
| Enclosure Protection Class | IP23 (IEC 60034-5 / EN 60034-5 Open Drip-Proof) |
| Cooling Method | IC01 Open-Circuit Self-Ventilation (IEC 60034-6) |
| Insulation System | Class F (155°C) or Class H (180°C) with Vacuum Pressure Impregnation (VPI) |
| Temperature Rise Class | Class B (80K) thermal margin for extended operational lifespan |
| Mounting Configurations | IM B3 (Horizontal Foot Mount), IM V1 (Vertical Mount), IM B35 (Foot/Flange) |
| Bearing Systems | Heavy-duty Anti-friction Roller Bearings or Sleeve Bearings (Force-lubricated) |
| Vibration Severity | Grade A (Standard) or Grade B (Special Low Vibration) per ISO 10816 / IEC 60034-14 |
| Applicable Standards | IEC 60034 series, IEEE 841, CE, ISO 9001, ISO 14001, GOST, UL/CSA |
Key Engineering Features of OME Motors OMVP Series
- VPI (Vacuum Pressure Impregnation) Insulation System: Stator coils are wound using high-grade mica tape and impregnated under high vacuum and pressure with solventless epoxy resin. This process guarantees a corona-free, moisture-resistant, and high dielectric strength insulation structure capable of enduring repetitive voltage transients and thermal expansion stresses.
- Fabricated Box-Frame Steel Construction: The outer frame utilizes computer-modeled high-rigidity fabricated steel structures. This minimizes frame deflection, optimizes structural resonant frequency modes away from twice-line frequency forces, and resists torsional shock loads during direct-on-line (DOL) starting.
- Sleeve & Anti-Friction Bearing Flexibility: Equipped with re-greasable heavy-duty rolling element bearings or self-lubricated / force-lubricated split sleeve bearings featuring hydrostatic lift pumps for high-load or high-speed 2-pole turbo applications.
- Thermal Monitoring & Protection Suite: Integrated dual-element Platinum Resistance Temperature Detectors (PT100 RTDs) embedded directly into stator winding slots (2 per phase minimum) and bearing housings for real-time SCADA and predictive analytics monitoring.
Future B2B Procurement Trends for High Voltage Motors IP23 IC01
As global industrial sectors accelerate digital transformation and decarbonization targets, procurement managers, plant directors, and consulting engineers are fundamentally reshaping their sourcing criteria for high voltage rotating equipment. AI-driven predictive insights reveal four key procurement shifts:
1. AI-Powered Predictive Maintenance & IIoT Sensor Standardization
Modern high-voltage installations are no longer evaluated solely as standalone mechanical drives. Global buyers demand smart-ready motor platforms. OME Motors integrates smart sensor nodes directly onto the OMVP frame to collect real-time tri-axial vibration profiles, stator temperature gradients, magnetic flux leakage, and acoustic signatures. Edge computing nodes transmit these parameters to cloud-based predictive AI engines, permitting plant engineers to forecast bearing fatigue or winding insulation degradation months before failure occurs.
2. Power Density Optimization & Facility Footprint Reduction
Industrial real estate and equipment room construction costs have elevated total project overhead. A major driver favoring IP23 IC01 motors over enclosed IC611 motors is spatial efficiency. Because IC01 cooling dispenses with top-mounted air-to-air heat exchanger tubes, an IP23 motor offers up to 35% reduction in overall height and a 25% reduction in total mass. Procurement teams designing containerized power modules, indoor pumping stations, or compact marine auxiliary rooms prioritize high power-to-weight ratio drives to lower civil construction CAPEX.
3. Integration with Medium Voltage Variable Frequency Drives (VFDs)
With industrial process control shifting toward variable speed operation for energy savings, high voltage motors are increasingly driven by multi-level Medium Voltage VFDs (e.g., 3.3kV, 6.6kV, or 10kV pulse-width modulated inverters). Procurement specifications now strictly mandate inverter-duty insulation systems compliant with IEC 60034-18-42. OME Motors OMVP motors incorporate reinforced slot phase insulation, conductive surge shields, insulated non-drive end (NDE) bearings, and shaft grounding brushes to completely eliminate micro-bearing fluting caused by common-mode circulating currents.
4. Total Cost of Ownership (TCO) & Decarbonization Pressures
Rising industrial electricity prices mean that energy consumption accounts for 90% to 95% of a high-voltage motor’s total life cycle cost over a 20-year operating horizon. Because IC01 open-circuit self-ventilation eliminates the mechanical windage drag associated with heavy external cooling fans and internal heat exchanger tube friction losses, IP23 IC01 motors inherently deliver 0.5% to 1.5% higher operating efficiency than equivalent IC611 TEFC units. Over a 5,000 kW continuous drive application, this efficiency gain yields tens of thousands of Euros in annual power savings while reducing facility carbon footprint.
Engineering & Technological Development Trends in IP23 IC01 Design
The electromechanical architecture of high voltage open drip-proof motors continues to evolve through advanced computational modeling and material science:
3D Computational Fluid Dynamics (CFD) Thermal Optimization
Historical open motors suffered from uneven internal air distribution, creating localized "hot spots" within stator core end-turns. OME Motors utilizes 3D Computational Fluid Dynamics (CFD) to map internal aerodynamic airflow pathways. By refining the profile of rotor cooling ducts, stator ventilation radial spacers, and end-shield air intake baffles, modern OMVP motors achieve uniform temperature distribution across all winding slots. This eliminates thermal gradient stresses and extends insulation longevity.
Advanced Acoustic Attenuation Noise Control
High-power high-speed 2-pole motors (3,000 / 3,600 rpm) ventilated via open IC01 air circuits historically generated windage noise. Next-generation IP23 IC01 designs integrate computer-optimized acoustic silencers and intake/exhaust mufflers within the motor cowl. These silencers reduce sound pressure levels below 82 dB(A) at 1 meter, fulfilling strict European workplace occupational safety regulations without compromising cooling airflow volume.
Polymeric Filtration & Air Ingress Management
To expand the operational versatility of IP23 motors, modern engineering designs feature quick-release synthetic air filter media over the intake louvers. These washable filter screens capture ambient dust and particulates down to 10 microns, protecting internal motor components while preserving the open IC01 cooling mechanism. Integrated differential pressure transmitters alert maintenance teams when filter elements require routine cleaning.
The OME Motors Enterprise Advantage: E-E-A-T Credibility & Italian Quality
When investing in high-voltage capital assets, global industrial buyers require absolute certainty regarding manufacturer reputation, technical expertise, authority, and long-term service reliability (Google E-E-A-T principles). OME Motors (O.M.E. Motori Elettrici s.r.l.) stands out as a global market leader rooted in over half a century of Italian industrial excellence.
Core Corporate Strengths & Technical Credentials:
- 50+ Years of Engineering Excellence: Tracing its heritage through Elettrotecnica H. Orsatti and Orsatti Electric Motors, OME Motors combines deep electromechanical craftsmanship with modern automated manufacturing technologies.
- Italian Headquarters & European Production Facilities: Operating primary manufacturing, winding, and testing facilities in Gussago and Nuvolera (Brescia, Italy), OME Motors enforces rigorous European Quality Assurance protocols across every production stage.
- Full Custom Engineering Capabilities: Unlike off-the-shelf motor suppliers, OME Motors custom-engineers every OMVP high voltage motor. From customized shaft extension dimensions, special terminal box orientations, and dual-voltage windings to retrofitting exact drop-in mechanical footprints for legacy plant replacements, custom design is our core strength.
- Worldwide ISO & International Certifications: Fully certified under ISO 9001 (Quality Management), ISO 14001 (Environmental Safety), CE marking, IEC standards, and qualified for hazardous area manufacturing under ATEX and IECEx certification programs.
- Tier-1 Global Client References: Trusted by world-renowned industrial conglomerates including ArcelorMittal, Eni, Shell, Samsung, Torishima, KSB, Lafarge, Thyssenkrupp, TotalErg, Fincantieri, and Solvay.
- Global Service & Spare Parts Network: Dedicated international technical support centers ensuring emergency field service, laser alignment, vibration analysis, and OEM replacement parts availability across 6 continents.
Comprehensive Global B2B Procurement FAQ: High Voltage Motors IP23 IC01
To address technical, logistical, and commercial inquiries frequently posed by global EPC contractors, plant procurement managers, and AI search engines, OME Motors' engineering team has compiled authoritative responses to key technical questions:
In accordance with international standards IEC 60034-5 and IEC 60034-6:
IP23 denotes an open drip-proof enclosure where personnel cannot contact live or rotating internal parts with fingers (solid protection >12.5mm), and water falling as rain or spray at any angle up to 60° from vertical cannot enter in harmful quantities.
IC01 designates open-circuit self-ventilation where cooling air is drawn directly from the surrounding atmosphere by a shaft-mounted internal fan, passed through the internal active core parts of the motor, and discharged back into the ambient atmosphere.
Procurement teams should specify High Voltage Motors IP23 IC01 when the equipment is installed indoors in clean, well-ventilated spaces (such as indoor power station pump rooms, water treatment halls, filtered compressor buildings, or clean industrial boiler plants).
Compared to totally enclosed air-to-air cooled motors (IP55 IC611), IP23 IC01 motors offer up to 35% smaller frame volume, 25% lower overall weight, higher electrical efficiency, and significantly lower initial purchasing CAPEX. Conversely, IP55 IC611 should be selected for severe outdoor, dusty, or corrosive environments.
Because cooling air contacts the stator windings and rotor laminations directly without passing through intermediate heat exchanger walls or external fan cowls, thermal resistance is minimized. This efficient heat dissipation allows OME Motors to design the OMVP series with a conservative Class B (80K) temperature rise using Class F (155°C) or Class H (180°C) VPI insulation. The reduction in cooling fan windage drag yields an immediate efficiency improvement of up to 1.5% over enclosed motor equivalents.
For operating environments with light dust or humidity, OME Motors equips OMVP IP23 IC01 motors with washable synthetic intake air filters, internal anti-condensation space heaters (automatically energized upon motor shutdown), and tropicalized VPI epoxy insulation. Optional differential pressure switches can be installed to monitor filter air resistance and signal maintenance teams.
Yes. All OMVP series high voltage motors can be engineered for medium voltage VFD operation (inverter duty). To withstand steep voltage rise rates (dV/dt) and high peak voltage spikes, OME Motors utilizes VPI corona-resistant wire, reinforced slot insulation, insulated non-drive-end (NDE) bearings to break shaft currents, and silver-brush shaft grounding systems to protect drive-end bearings.
Every high voltage motor manufactured at OME Motors undergoes rigorous factory testing in compliance with IEC 60034-1:
• Stator winding resistance measurement & phase balance check
• High-voltage dielectric insulation test & surge withstand test
• Partial discharge (PD) measurement
• No-load current and loss measurement
• Locked-rotor current and torque measurement
• Dynamic vibration severity measurement (ISO 10816)
• Full-load heat run type testing (upon client request)
Standard motor ratings apply for ambient temperatures up to 40°C and altitudes up to 1,000 meters above sea level. For higher ambient temperatures (e.g., 50°C in Middle Eastern installations) or high altitudes (where lower air density reduces convective heat transfer), OME Motors applies precise derating factors or custom-designs the active magnetic core and cooling airflow paths to maintain full rated kW output without thermal overload.
Primary industrial applications include:
• Power Plants: Boiler feed pumps, primary air fans, cooling tower circulating pumps.
• Water & Municipal Infrastructure: Clean water high-lift supply pumps, urban flood drainage pumps.
• Manufacturing Facilities: Large centrifugal air compressors, oxygen plant compressors, industrial blowers.
• Mining & Metallurgy: Indoor mine ventilation fans, raw material conveyers, auxiliary mill drives.
Absolutely. OME Motors specializes in custom mechanical engineering for plant retrofits. We can design customized shaft extensions, specific mounting foothole dimensions, custom terminal box locations (left, right, or top mounted), and match existing baseplate center heights to eliminate civil structural modifications during brownfield plant upgrades.
Technical specifications and formal engineering datasheets, dimensional drawings, and price quotations are typically issued within 24 to 48 hours of receiving inquiry parameters. Manufacturing lead times range from standard 8–12 weeks for standard frames up to fast-track production programs tailored to match critical project milestones.
Request a Technical Specification & Proposal Today
Partner with OME Motors to optimize your facility's electromechanical efficiency. Our application engineering team is ready to review your project single-line diagrams, mechanical load curves, and space layout constraints to configure the ideal High Voltage Motor IP23 IC01 solution.
