High-Temperature Motor Portfolio
Featured Industrial & Custom OEM High Temp Motors
Discover our certified range of brushless PM, three-phase induction, explosion-proof, and custom long-axis high-temperature resistant motor solutions.

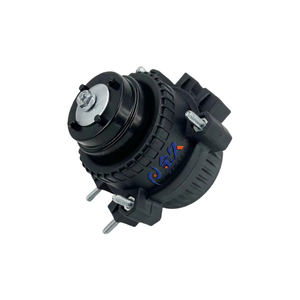

Brushless Permanent Magnet Refrigeration Equipment Motor IE3 Efficiency IP65 Waterproof Freezer Fan Motor

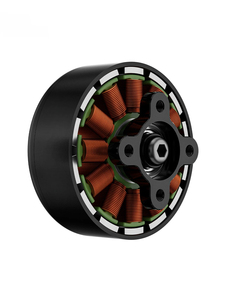

5315 420KV High Power Brushless Motor 13-16 Inch Long Range Drone Quadcopter 8S-12S UAV Parts

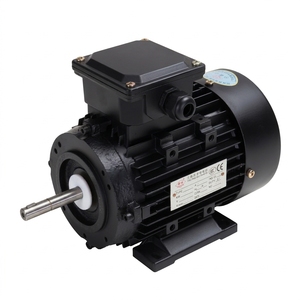

All Copper Three-Phase 0.75KW High Temperature Resistant Induction Motor Pump with Flange Mount
Durable High-Temperature Material Motor Insulation Yellow Fiberglass EPGM203 Structural Support

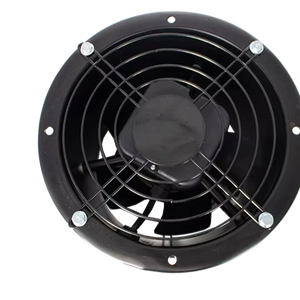

Industrial Grade New Original Motor All-Metal Heat Resistant Ventilation Solution for High-Temp Work Scenarios

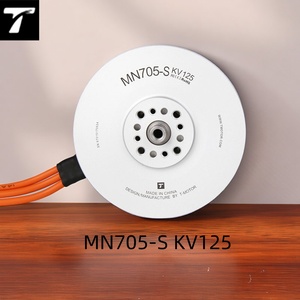

MN705-S High Temperature Resistant Overload-Proof Brushless Motor for Multi-Rotor Industrial UAVs
Customized 90W YY5612 Single-Phase Long-Axis High Temperature Resistant Motor for Industrial Hand Tools

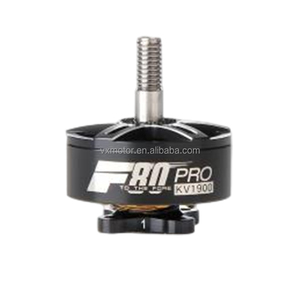

F80 PRO KV1900/2200/2500 High Temperature Resistant Titanium Alloy Shaft Brushless Motor (CE/ROHS/ISO)
220°C+
Peak Insulation Class H/C
50+ Yrs
Italian Engineering Heritage
IE3 / IE4
Super Premium Efficiency
100%
Custom OEM Shaft & Winding
Engineering Technical Whitepaper
High Temperature Motor Engineering: Thermal Management, Material Physics, and Custom OEM Design Protocols
In modern heavy industrial automation, aerospace propulsion, commercial refrigeration, metallurgy, and petrochemical processing, standard electric motors operating above 40°C ambient temperatures experience rapid thermal degradation. Standard Class B (130°C) and Class F (155°C) copper winding insulation systems deteriorate exponentially when exposed to continuous ambient heat, leading to dielectric breakdown, inter-turn short circuits, bearing grease liquefaction, and catastrophic rotor demagnetization. As a premier Custom OEM High Temperature Resistant Motors Manufacturer & Supplier, our engineering core builds on 50+ years of Italian electromechanical heritage (inheriting the technological rigor of O.M.E. Motori Elettrici s.r.l.), delivering tailored drive solutions engineered to survive extreme continuous duty (S1) up to thermal thresholds exceeding 200°C to 250°C.
Technical Insight: According to the Arrhenius Rate Theory applied to electrical insulation, every 10°C rise in winding temperature above the rated thermal limit reduces insulation life expectancy by 50%. Custom OEM high-temperature motor engineering mitigates this failure curve through advanced Class H (180°C), Class N (200°C), and Class C (220°C+) synthetic resin impregnated insulation systems.
1. Critical Thermal Dissipation Mechanics & Advanced Insulation Science
High-temperature resistant motor performance depends on three core physical pillars: Dielectric Thermal Rating, Magnetic Coercivity Retention, and Mechanical Shaft Thermal Expansion Compensation.
Class H & C Insulation Systems
Utilizing dual-coated polyimide-enamelled 100% oxygen-free copper wire wrapped in NOMEX® or yellow EPGM203 fiberglass composite sheets. Vacuum Pressure Impregnation (VPI) with high-temperature silicone varnish ensures bubble-free dielectric protection up to 220°C.
High-Coercivity Magnets
For Permanent Magnet (PM) and Brushless DC motors (such as drone/UAV and refrigeration fan motors), we employ high-grade UH and EH NdFeB or Samarium-Cobalt (SmCo) permanent magnets featuring intrinsic coercivity (Hcj) capable of resisting irreversible thermal demagnetization under continuous high-power loads.
Thermal Expansion & Metallurgy
Machined with custom TC4 Titanium alloy shafts or grade 316 stainless steel, fitted with specialized C3/C4 clearance high-temperature synthetic grease bearings (Klüber / Mobil Polyrex EM) that eliminate shaft seizing caused by differential thermal expansion.
2. Comprehensive Technical Specifications Comparison Matrix
The following technical decision matrix details the operational parameters across our high-temperature custom OEM motor series to assist procurement managers and system design engineers:
| Motor Series Type |
Thermal Range (°C) |
Insulation Class |
Housing & Shaft Material |
Protection Rating |
Key Target Applications |
| PM Brushless Fan Motor |
-30°C to +85°C |
Class F / H (180°C) |
Cast Aluminum / SS304 |
IP65 / IP68 Waterproof |
Commercial Freezer, HVAC Ventilation, Cold Chain |
| High-Power UAV Brushless (5315/MN705/F80) |
-20°C to +180°C |
Class H (180°C) Enamel |
Aviation 7075-T6 + TC4 Titanium Shaft |
IP54 Dust/Splash Proof |
Long-range FPV, Industrial Inspection UAV, Heavy Lift |
| Three-Phase Flange Induction Pump |
-40°C to +200°C |
Class H / Class N (200°C) |
100% Heavy Copper Winding + Cast Iron |
IP55 / IP66 Flange Mount |
High-temp Oil Pumps, Chemical Fluid Circulation |
| All-Metal Industrial Ventilation Solution |
-20°C to +220°C |
Class H + EPGM203 Fiberglass |
All-Metal Electro-Galvanized Heat Shield |
IP55 / High Airflow |
Oven Exhaust, Steel Foundry Air Treatment, Kilns |
| Custom Long-Axis Single-Phase Tool Motor |
-10°C to +160°C |
Class H VPI Impregnated |
Machined Extended Alloy Steel Shaft |
IP44 / Capacitor Run |
High-duty Hand Tools, High-temp Industrial Blowers |
Italian Engineering Expertise & Global OEM Manufacturing Quality
Combining the heritage of OME Motors (O.M.E. Motori Elettrici s.r.l.)—built upon over 50 years of Italian electromechanical leadership in Gussago (BS), Italy—with state-of-the-art custom OEM production lines, we provide world-class motor solutions certified to international standards including ATEX, IECEx, CE, ISO 9001, UL, CSA, and GOST.
Whether you require customized shaft extensions, high-voltage explosion-proof enclosures (OMEX series), F300/F400 smoke extraction ratings, or low-voltage high-torque brushless drive systems, our global engineering team delivers total design flexibilities tailored precisely to your operational requirements.
Strategic Procurement Horizon
Future B2B Procurement Trends in High-Temperature Industrial Electric Motors
As international environmental regulations tighten and energy costs escalate globally, procurement managers and original equipment manufacturers (OEMs) are shifting their sourcing criteria from low initial acquisition cost to Total Cost of Ownership (TCO), Super Premium Energy Efficiency (IE4/IE5), and Embedded Smart Thermal Diagnostics.
1. Shift Towards IE4/IE5 Permanent Magnet Synchronous Motors (PMSM)
Traditional high-temperature induction motors often sacrifice power factor and efficiency at elevated temperatures due to increased copper rotor resistance. The market is accelerating adoption of custom high-temp PM motors that maintain IE4/IE5 efficiency ratings even when operating under high ambient heat, drastically reducing lifecycle power consumption in 24/7 continuous industrial facilities.
2. Integration of Smart IoT Thermal & Vibration Condition Monitoring
Next-generation OEM procurement specifications increasingly mandate embedded PT100/PT1000 RTD thermal sensors within the stator windings and bearing housings, alongside wireless vibration monitoring nodes. Real-time telemetry prevents unexpected thermal runaway and enables predictive maintenance before insulation breakdown occurs.
3. Demand for Hybrid Modular OEM Customization
Modern B2B buyers no longer accept off-the-shelf standard motors for specialized equipment. The trend heavily favors custom manufacturers offering modular shaft lengths, variable flange mounting dimensions, custom voltage/frequency windings (8S-12S for drone BLDC; 380V/440V/690V for industrial induction), and tailored heat-dissipation fin geometries.
Technology Roadmap
Industry & Technological Development Trends in Extreme Heat Electromechanical Drives
Driven by advancing requirements in heavy metallurgy, glass manufacturing, aerospace UAVs, and emergency fire safety ventilation, motor design technology is undergoing significant innovation:
-
✔
Nanocomposite & Ceramic-Coated Insulation Winding: Research into inorganic ceramic-polyimide hybrid varnishes enables next-generation motor windings to resist corona discharges caused by Variable Frequency Drive (VFD) high-frequency PWM switching, while maintaining structural integrity beyond 250°C.
-
✔
Titanium Alloy & Lightweight Composite Shaft Engineering: In drone propulsion (e.g., F80 PRO titanium shaft series) and high-speed turbomachinery, replacing heavy steel with Grade 5 Titanium shafts cuts rotational inertia by up to 40% while preserving high torsional stiffness under high thermal shock loading.
-
✔
Dual-Function Emergency Smoke Extraction Compliance: Industrial ventilation systems are transitioning to dual-duty motors that function normally at standard ambient temperatures for energy-efficient HVAC ventilation, but are certified to operate continuously for 2 hours at 300°C (F300) or 400°C (F400) during emergency fire evacuations.
Buyer Knowledge Base
High Temperature Motors Procurement FAQ
Clear technical answers to common questions raised by procurement directors, design engineers, and OEM equipment manufacturers.
Q1:
What is the difference between Class F and Class H thermal insulation in high-temperature motors?
Class F insulation allows a maximum winding temperature limit of 155°C (with an 105°C temperature rise over a 40°C ambient). Class H insulation elevates the maximum allowable temperature limit to 180°C (with a 125°C rise). For severe high-temperature work scenarios above 60°C ambient, Class H or custom Class C (220°C+) insulation is required to prevent rapid varnish baking, embrittlement, and dielectric failure.
Q2:
How do you prevent permanent magnets from demagnetizing in high-temp BLDC drone and industrial fan motors?
Standard NdFeB magnets suffer irreversible flux loss above 80°C. To guarantee thermal stability, we utilize high-coercivity magnet grades such as UH (180°C), EH (200°C), or Samarium-Cobalt (SmCo) magnets (up to 300°C-350°C). Combined with high-temperature epoxy potting and heat-reflective outer rotor shell anodizing, our motors retain 98%+ magnetic flux density even under maximum overload conditions.
Q3:
Can custom OEM modifications be made to motor shaft dimensions, mountings, and terminal lead wires?
Yes. As a dedicated OEM manufacturer, we engineer custom extended long-axis shafts (e.g., YY5612 series), keyway modifications, custom B3/B5/B14 flange mountings, high-temp fluoropolymer/PTFE insulated lead wires, and specialized anti-vibration housings according to your precise CAD/STEP design files.
Q4:
What bearing lubrications are specified for continuous high-temperature motor operations?
Standard lithium grease melts and runs out of bearing raceways above 120°C. We specify high-performance synthetic polyurea or fluorinated (PFPE/PTFE) greases, such as Klüber quiet BQH 72-102 or Mobil Polyrex EM, which maintain film strength and lubricity from -40°C to +200°C, drastically extending bearing B10 life.
Q5:
What testing and quality control certifications accompany custom OEM orders?
Every custom production lot undergoes 100% routine testing including high-voltage dielectric withstand (Hipot), insulation resistance (Megger), surge wave comparison, rotor dynamic balancing (ISO 1940 Grade G2.5/G1.0), and full thermal rise testing. Complete inspection test reports (EN 10204 3.1 certification) and CE, ROHS, FCC, ISO, or ATEX documentation are provided with shipment.
Q6:
What is the typical lead time and Minimum Order Quantity (MOQ) for custom prototype development?
We support both agile prototype development and large volume OEM production runs. Prototype custom sample lead times typically range from 15 to 25 business days depending on tooling requirements, while standard production batch lead times are 30 to 40 days. Flexible MOQ options are available for specialized industrial machinery projects.
Need a Tailored High Temperature Motor Solution for Your Project?
Consult directly with our senior electromechanical application engineers to request custom CAD drawings, thermal calculation support, or wholesale OEM pricing quotes.
