Engineered for extreme reliability, exceptional power density, and high dynamic response across robotics, heavy-payload agricultural drones, industrial automation, hollow-cup aerospace mechanisms, and precision marine systems.
In modern industrial automation, robotics, aerospace, and heavy-payload uncrewed aerial vehicles (UAVs), traditional brushed DC and standard AC induction motors are rapidly giving way to advanced Brushless DC (BLDC) Permanent Magnet Synchronous Motors. As global industries demand higher power densities, strict energy conservation, zero maintenance schedules, and micro-second dynamic response times, Chinese BLDC manufacturing ecosystem has established itself as the epicenter of global electromechanical innovation.
Unlike traditional brushed configurations where mechanical commutators create friction, carbon dust, thermal loss, and electromagnetic interference (EMI), BLDC motors utilize electronic commutation via digital Field-Oriented Control (FOC) or trapezoidal drive algorithms. By replacing physical brushes with solid-state silicon switches and high-coercivity rare-earth Neodymium (NdFeB) permanent magnets, industrial BLDC systems achieve overall electrical efficiencies exceeding 92% to 96% (IE4 and IE5 equivalent standards).
Understanding the fundamental engineering differences between motor topologies is critical for system architects and B2B procurement managers:
| Performance Specification | Industrial BLDC Motors (Brushless) | Legacy Brushed DC Motors | Standard AC Induction Motors |
|---|---|---|---|
| Commutation Mechanism | Electronic (FOC / Hall-Effect / Sensorless) | Mechanical Carbon Brushes & Commutator | Electromagnetic Stator Slip Induction |
| Peak Efficiency Class | IE4 / IE5 Ultra-Premium (92% - 97%) | Standard (65% - 78%) | IE2 / IE3 Standard (80% - 90%) |
| Maintenance & Lifespan | Maintenance-Free (>40,000 Hours) | Frequent Brush Replacement (1,500 - 3,000 Hrs) | Moderate (Bearing maintenance required) |
| Power-to-Weight Density | Extreme (Up to 4.8 kW/kg) | Low to Moderate | Low (Heavy iron stator core) |
| Thermal Heat Dissipation | Superior (Heat generated in outer stator) | Poor (Heat trapped inside inner rotor) | Moderate (Requires external cooling fan) |
| Torque Ripple & Cogging | Minimal (<1.5% with skewed stator design) | High due to mechanical slotting | Moderate |
| Ingress Protection Capability | Hermetically Sealed (IP67 / IPX8 Submersible) | Limited (Requires ventilation for carbon dust) | IP55 Standard (Bulky enclosure for IP66) |

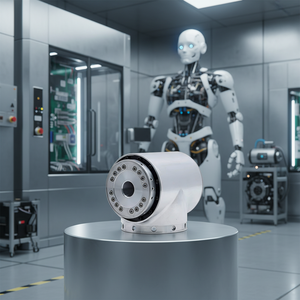

Designed for exoskeletons, humanoid bipedal robotics, and collaborative robotic arms (cobots). These compact modules seamlessly integrate a high-torque frameless BLDC motor, high-precision planetary or harmonic strain-wave reducer, dual absolute optical encoders, and a 48V FOC servo controller into a single IP67 flange-mounted housing.

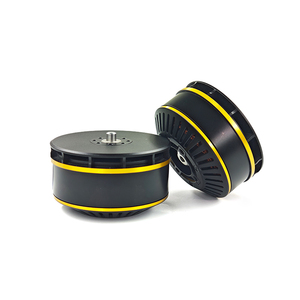

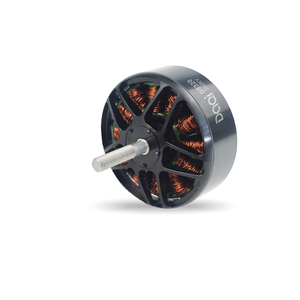

Engineered specifically for agricultural crop spraying, aerial mapping, and heavy-duty logistics multirotors. High-KV and low-KV multi-rotor motors (such as H6215 180KV and D5320 series) feature active centrifugal cooling vanes, IPX7 waterproof anti-corrosion stator coatings, and N52SH high-temperature Neodymium magnets.
Utilizing a self-supporting coreless skew-wound stator coil, hollow cup BLDC motors eliminate iron losses and cogging torque completely. Operating at ultra-high rotational speeds (up to 10,000+ RPM) with zero rotational inertia lag, these motors are crucial for aerospace actuators, optical targeting systems, and medical surgical handpieces.
As OEM buyers and tier-1 industrial system integrators evaluate manufacturing partners in China, key technological shifts are transforming purchasing criteria. Procurement directors must align with suppliers offering technical depth in the following areas:
To reduce eddy current losses at high operational frequencies, top Chinese factories are transitioning from standard 0.5mm silicon steel to ultra-thin 0.2mm Japanese or domestic Baosteel laminations. This reduces iron loss by up to 35%, boosting continuous operating efficiency.
For motors operating in harsh marine, construction, or chemical environments, automated epoxy resin potting ensures complete elimination of air voids inside stator slots, dramatically improving heat conduction to the outer casing and guaranteeing IP68 submersible protection.
Modern industrial BLDC motors feature embedded NTC thermistors, digital Hall sensors, and vibration sensing nodes that communicate directly with industrial IoT edge gateways. This enables real-time bearing condition monitoring and predictive fault analysis.
Off-the-shelf catalog motors rarely fit complex robotic frames or custom gearboxes. Top suppliers provide automated CNC custom winding for specific voltage constants (KV rating), along with custom D-cut, splined, or hollow shaft configurations.
China produces over 70% of the world's permanent magnet electric motors. This dominance is driven by an unmatchable vertical integration: direct access to key rare-earth elements (Neodymium, Praseodymium, Dysprosium), complete domestic supply chains for high-purity copper magnet wire, precision CNC machining clusters, and automated surface-mount technology (SMT) for drive controller assembly.
By securing direct access to N52SH, N48UH, and N42EH grade Neodymium magnets that maintain magnetic flux stability at temperatures up to 200°C, leading Chinese suppliers offer high-torque motors without the prohibitive material surcharges common in Western markets.
Equipped with 3D coordinate measuring machines (CMM), Magtrol hysteresis dynamometer testing benches, salt spray corrosion chambers, and automated dynamic balance analyzers, top facilities enforce ISO9001 and IATF16949 automotive-grade quality standards.
From initial 3D electromagnetic finite element analysis (FEA) design simulation to working prototype samples in as little as 10 to 14 days, Chinese engineering teams accelerate your product time-to-market dramatically.
Connect directly with our senior electromechanical engineering team. Whether you need standard catalog samples, custom KV stator windings, robotic actuator prototyping, or volume OEM production, we deliver reliable performance engineered to your exact specifications.
