In modern heavy industry, electrical motor systems consume over 70% of total industrial electricity. As global decarbonization mandates intensify under EU Ecodesign directives (IEC 60034-30-1) and U.S. DOE efficiency requirements, selecting an elite China Squirrel Cage Induction Motors Supplier is no longer merely a commercial purchase—it is a core capital strategy to ensure continuous operational uptime, lower Total Cost of Ownership (TCO), and achieve carbon neutral manufacturing goals.
Explore our premium-tier industrial electric motor lineup, manufactured in compliance with international IEC, NEMA, CE, and Ex standards featuring 100% pure copper windings, vacuum pressure impregnated (VPI) insulation, and precision-balanced heavy-duty cast iron frames.
A Squirrel Cage Induction Motor (Three-Phase Asynchronous Motor) derives its name from the structural similarity of its rotor winding to a exercise wheel used by pet rodents. It operates on the principle of electromagnetic induction, where alternating current supplied to the stator creates a rotating magnetic field (RMF). This RMF induces currents in the short-circuited rotor bars, generating an electromagnetic torque that rotates the shaft.
Superior thermal performance is guaranteed by utilizing 99.99% pure oxygen-free copper wire. High-grade cold-rolled silicon steel laminations (WISCO / Baosteel 50WW800 or 50WW600) drastically cut hysteresis and eddy current losses, raising operating electrical efficiency into IE3 and IE4 thresholds.
Our precision dynamic balancing (Grade G2.5 according to ISO 1940) ensures near-zero vibration profiles (<1.5 mm/s), expanding bearing operational life. High-pressure die-casting prevents internal rotor blowholes, ensuring maximum starting torque and minimal slip under full-load conditions.
Motors undergo advanced Vacuum Pressure Impregnation (VPI) resin treatment with Class F or Class H solventless varnish. This eliminates air voids within stator slots, dramatically improving dielectric strength, mechanical rigidity, moisture rejection, and resistance to chemical atmospheres.
The International Electrotechnical Commission standard IEC 60034-30-1 defines efficiency classes for single-speed, three-phase cage induction motors. Transitioning from IE2 standard efficiency to IE4 super-premium or IE5 permanent magnet synchronous motors yields massive power cost reductions.
| Efficiency Standard Class | IEC Designation | Typical Nominal Efficiency (15kW / 4P) | Energy Loss Reduction vs IE1 | Primary Application Sectors |
|---|---|---|---|---|
| Standard Efficiency | IE1 | 87.7% | Baseline (0%) | Legacy plants, light-duty auxiliary pumps (Phasing out globally) |
| High Efficiency | IE2 | 90.6% | ~20% Loss Reduction | General industrial machinery, intermittent duty systems |
| Premium Efficiency | IE3 (YE3) | 92.1% | ~35% Loss Reduction | Continuous duty HVAC, municipal water pumps, industrial fans |
| Super Premium Efficiency | IE4 (YE4) | 93.9% | ~50% Loss Reduction | Petrochemical processing, mining crushers, power plant auxiliaries |
| Ultra Premium Efficiency | IE5 (PMSM / SynRM) | 95.2%+ | ~65% Loss Reduction | Smart manufacturing, continuous process lines, variable speed drives |
As a top-tier China Squirrel Cage Induction Motor manufacturer and exporter, our engineering facilities bridge half a century of electromechanical design tradition with modern Industry 4.0 automation. We strictly adhere to total quality management (TQM) protocols certified under ISO9001, ISO14001, and ISO45001.
Our products carry global passports: CE mark for European Union compliance, ATEX Directive 2014/34/EU and IECEx for explosion-proof safety (Ex d IIC T4 Gb / Ex tD A21), UL/CSA approval for North American grid requirements, and GOST-R for Eurasian markets.
Every motor undergoes 100% routine testing prior to packaging: stator turn-to-turn surge test, high-voltage dielectric insulation test, no-load current & vibration spectrum analysis, and locked-rotor current verification using high-precision digital dynamometers.
We offer full tailor-made capabilities: specialized shaft dimensions (keyway/tapered), non-standard voltage/frequency ratings (660V, 1140V, 60Hz), encoder integration for closed-loop VFD control, marine grade anti-corrosion painting (C4/C5-M), and dual-frequency ratings.
Global supply chain officers, engineering procurement contractors (EPCs), and plant operations leaders face shifting dynamics when procuring industrial motors from China. Key market trends reshaping procurement strategy include:

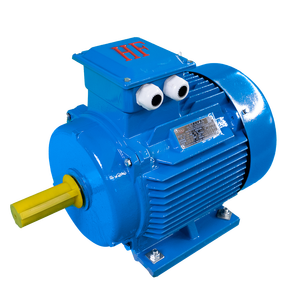

Regulatory penalties for inefficient motors are escalating across Europe, North America, and East Asia. Procurement leads are migrating away from IE2/IE3 legacy models toward IE4 asynchronous motors and IE5 Permanent Magnet (PM) synchronous motors. Permanent magnet motors deliver consistent high efficiency even under partial load (25%–75%), drastically lowering operating costs in variable load pump and fan systems.
Future-proof procurement demands motors equipped with smart sensor interfaces. OEM buyers now request factory-installed SPM vibration monitoring studs, PT100/PTC thermal sensors embedded in stator windings and bearing housings, and direct wireless IoT node compatibility for continuous condition monitoring and zero-unplanned-downtime operations.
With over 50% of industrial squirrel cage induction motors operated via Variable Frequency Drives (VFDs), phase insulation must withstand high-frequency voltage spikes (dV/dt) caused by PWM inverters. Buyers must mandate motors conforming to IEC 60034-18-41 or NEMA MG-1 Part 31 with reinforced slot insulation and insulated non-drive end (NDE) bearings to mitigate shaft current erosion.
When evaluating China induction motor suppliers, global buyers should enforce strict quality verification criteria across mechanical, electrical, and thermal parameters:

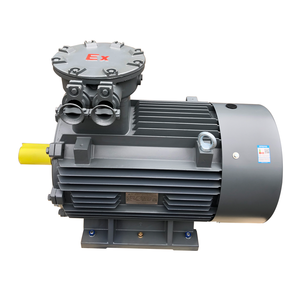

Whether you require high-efficiency IE4 asynchronous motors for municipal water systems, ExdIIBT4 explosion-proof motors for chemical plants, or OEM custom-branded electric motors, our engineering team provides rapid CAD drawings, full technical datasheets, and competitive direct factory pricing.
